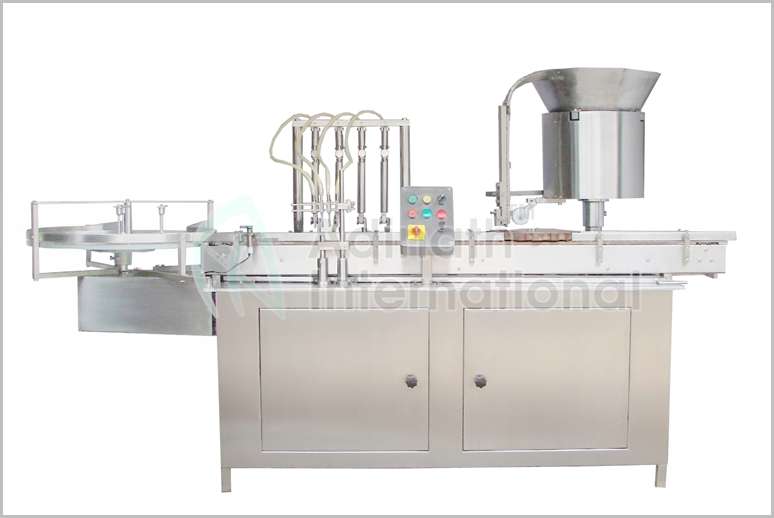

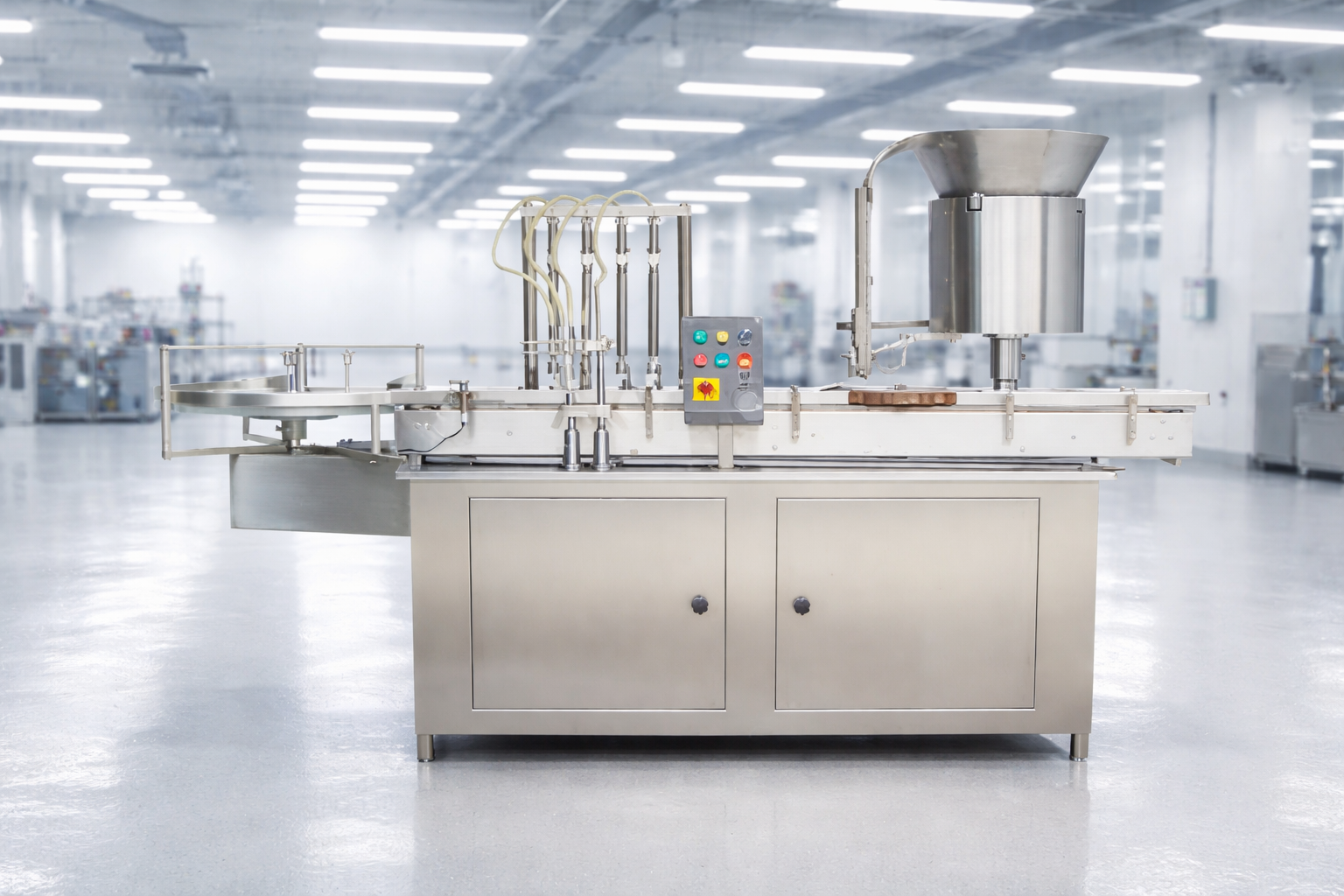

cGMP Vial Filling Machine

Description

In the fast-paced pharmaceutical manufacturing landscape, precision, sterility, and efficiency are non-negotiable. Injectable glass vials require advanced filling technology to maintain product integrity and meet stringent regulatory standards. At Adinath International, our state-of-the-art cGMP vial filling machine and automatic vial fillers deliver reliable performance for high-volume production while ensuring full compliance with current Good Manufacturing Practices (cGMP). Designed specifically for sterile environments and clean rooms, our automatic vial filling apparatus represents cutting-edge engineering tailored to the pharmaceutical sector. These machines excel in filling a wide range of products, including vaccines, biologics, cell and gene therapies, single-dose vials, and multi-dose medications. Whether you produce liquid injectables or lyophilized powders, Adinath International’s vial filling systems provide the versatility and precision modern pharma demands.

One of our key technological advantages is the modular design of our aseptic filling solutions. This innovative approach allows complete customization to match each client’s unique production requirements, batch sizes, and facility layouts. Unlike rigid, one-size-fits-all systems, our modular vial fillers offer exceptional flexibility without compromising on speed, accuracy, or cost-effectiveness. Clients benefit from competitive pricing and shorter delivery timelines, making it easier to scale operations or upgrade existing lines.

Every Adinath International vial filling machine is built for operation under laminar flow protection in ISO 5 / Class 100 environments. By removing potential contamination points and incorporating high-grade materials like 316L stainless steel, our equipment helps manufacturers consistently meet cGMP, FDA, EMA, and WHO guidelines. This focus on design-for-sterility translates into higher product safety, fewer batch rejections, and greater confidence during regulatory audits.

Pharmaceutical companies worldwide trust Adinath International for injectable filling solutions because of our proven expertise, decades of industry experience, and unwavering commitment to quality. Our team works closely with clients from initial consultation through installation, validation, and after-sales support — delivering true end-to-end partnership. Ready to upgrade your vial filling process? Explore Adinath International’s range of automatic vial filling machines and discover how our cGMP-compliant, aseptic solutions can elevate your production standards while reducing risks and costs. Contact our experts today for a customized proposal tailored to your facility’s needs.

A standout safety feature is the close proximity of filling and stoppering stations. This design significantly reduces the risk of contamination by shortening the exposure path under laminar airflow. The un-scrambler eliminates dead ends and hard-to-clean areas, supporting thorough sterilization and validation protocols required in sterile manufacturing. Our systems integrate online rubber stoppering, volumetric filling, and powder dosing on a single, compact platform. This all-in-one automation minimizes human intervention — a critical factor in maintaining Grade A/B cleanroom standards. Reduced operator involvement also shortens laminar airflow requirements and optimizes valuable sterile production space, lowering operational costs and improving overall throughput.

The foundation of our automatic vial filling machine includes several high-performance elements engineered for reliability and hygiene:

Turntable and Stainless Steel Conveyor Belt: Smooth, vibration-free handling of vials throughout the process.

Special Eccentric Pre-Gassing, Filling, and Post-Gassing Stations: Ensure product stability and minimize oxidation for sensitive biologics and vaccines.

316L Stainless Steel Syringes: Precision-crafted for volumetric accuracy and durability, paired with non-toxic synthetic rubber tubing.

Compact, Easy-Access Control Panels: Simplify operation and maintenance while supporting full automation.

Salient Features of cGMP Vial Filling Machine

Suitable for the filling Volume of 2ml to 250ml.
Piston pump/Peristaltic pump aseptic filling.
Filling accuracy of ±0.5% to ±1%.
No cross contamination.
Easy to validate filling system for small/large batch production.
All Contact Parts Made from Stainless Steel 316L & framework by Stainless Steel 304.
Variable A.C. frequency drive for speed adjustment.

Digital Vial Counter for counting production output.
In-feed Turn Table/ Unscrambler for automatic feeding of objects.
On-line Mechanism.
“No Vial – No Filling” System.
“No Vial – Machine Stop” System.
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface. (Optional)

Working Principle of cGMP Vial Filling Machine

The incoming dry vials (sterilized and siliconized) are fed through the unscrambler and suitably guided on the moving Delrin slat conveyor belt at the required speed of the correct placement below filling unit.

The filling unit consists of Filling Head, Syringes & Nozzles; Syringes & Nozzles are made of AISI SS 316L materials. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ”No Vial-No Filling” operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be increase & decrease by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid reaches to filling nozzles through silicon transparent pipe. Nozzles having up & down movement with help of cam mechanism, and it come down when vial hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers two vials together on conveyor for rubber stoppering operation.

Stoppering unit consist of Star wheel, Vibrator unit and Bowl. The sterilized and siliconized rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to starwheel and move in rotary direction along with starwheel, during movement it picks up the rubber stopper from the exit end of the chute and rubber stopper pressed by fix single pressing roller, which is spring loaded. Then vial further move on conveyor and collected on out feed starwheel for next sealing operation.

Technical Specification of cGMP Vial Filling Machine

Model	ALVF-40	ALVF-80	ALVF-120	ALVF – 250
Filling Heads	Two	Four	Eight	Twelve
Production Rate	Up to 40 Vials/Minute	Up to 80 Vials/Minute	Up to 150 Vials/Minute	Up to 250 Vials/Minute
Input Specification
Vial Diameter	15mm to 70mm	15mm to 70mm	15mm to 70mm	15mm to 70mm
Vial Height	25mm to 140mm	25mm to 140mm	25mm to 140mm	25mm to 140mm

Filling Precision	±1%	±1%	±1%	±1%
Power Required	1 H.P.	1.5 H.P.	2 H.P.	2 H.P.
Electrical Characteristics	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz
Overall Dimension	2050mm (L) x 850mm (W) x 1700mm (H)	2200mm (L) x 850mm (W) x 1700mm (H)	3000mm (L) x 945mm (W) x 1700mm (H)	3500mm (L) x 945mm (W) x 1700mm (H)

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Vial Filling Machine

Automatic Vial Filling Machine

High Speed Vial Filling Machine

Vial Liquid Filling Machine

Vial Powder Filling Machine

Automatic Vial Filling and Rubber Stoppering Machine

Lab Scale Vial Filling Stoppering & Cap Sealing Machine

Injectable Vial Powder Filling & Stoppering Machine

Peristaltic Pump based Vial Filling Machine

Applications of Automatic Vial Filler

Advantages of cGMP Vial Filling Machine

Full Regulatory Compliance & Easier Market Approval

Superior Sterility Assurance & Reduced Contamination Risk

High Filling Accuracy & Consistent Product Quality

Increased Efficiency, Productivity & Cost Savings

Ease of Operation, Cleaning & Maintenance

Enhanced Safety & Operator Protection

Key Features and Functionality of cGMP Vial Filling Machine

cGMP vial fillers are typically integrated into cleanroom environments and often housed in isolators or Restricted Access Barrier Systems (RABS) for enhanced sterility. Here’s a breakdown of their core aspects:

Filling Process: Automatically dispenses precise volumes of pharmaceutical liquids or powders into glass or plastic vials without human contact, using peristaltic pumps, time-pressure, or robotic systems for accuracy and consistency. Vials are then sealed with rubber stoppers, aluminum caps, or crimps.

Sterility Assurance: Operates in controlled environments with vaporized hydrogen peroxide (VHP) or PHP decontamination between batches. Features like “first air” exposure minimization and container closure integrity testing prevent microbial ingress.

Flexibility: Supports multiple vial sizes (e.g., 2–50 mL), formats (bulk or ready-to-use trays), and products (e.g., oncology drugs, vaccines). Quick changeovers (tool-free) and modular designs allow for versatile applications.

Compliance & Safety: Built with stainless steel frames, integrated environmental monitoring, and validation via media fills. Meets EU GMP Annex 1, FDA 21 CFR Part 211, and ISO standards for traceability and error prevention.

Automation & Integration: Often includes washing/depyrogenation tunnels, lyophilizers, labeling, and inspection stations. Robotic isolators enable small-batch filling with disposable components to reduce cross-contamination.

FAQ for cGMP Vial Filling Machine

What is a cGMP Vial Filling Machine?

A cGMP Vial Filling Machine is a fully automatic, modular vial filler designed for aseptic filling of injectable liquids or sterile powders into glass vials in sterile cleanroom environments. It combines volumetric filling (using piston or peristaltic pumps) with online rubber stoppering on a single compact platform. Built in strict accordance with Current Good Manufacturing Practice (cGMP) guidelines, it minimizes human intervention, reduces contamination risk, and ensures high sterility assurance for vaccines, biologics, antibiotics, and other parenteral products.

What is the production capacity and filling accuracy of the cGMP Vial Filling Machine?

The machine is available in multiple models with the following output:

ALVF-40: Up to 40 vials/min
ALVF-80: Up to 80 vials/min
ALVF-120: Up to 150 vials/min
ALVF-250: Up to 250 vials/min

It handles vial sizes from 2 ml to 250 ml (diameter 15–70 mm, height 25–140 mm) with a fill range of 2 ml to 250 ml. Filling accuracy is excellent at ±0.5% to ±1%, depending on product characteristics. Features like the “No Vial – No Filling” system and “No Vial – Machine Stop” system ensure precision and minimize product wastage.

Does the cGMP Vial Filling Machine support both liquid and powder filling?

Yes. This versatile cGMP Vial Filling Machine is suitable for both aseptic liquid filling (using piston/peristaltic pumps) and sterile powder dosing. It is widely used for vaccines, biologics, cell & gene therapies, oncology drugs, and antibiotic powders. The modular design allows easy customization for different products while maintaining full cGMP compliance and no cross-contamination.

How does the machine ensure cGMP compliance and sterility?

The machine is designed as a compact cGMP model with all product contact parts made from SS 316L (FDA-approved) and framework in SS 304. It features minimal dead legs, easy-to-clean surfaces, and supports integration with Class 100 / ISO 5 laminar airflow. Additional compliance features include:

IQ/OQ documentation
Optional PLC with 21 CFR Part 11 compliant GUI
“No Vial – No Filling” and “No Vial – Machine Stop” systems
Reduced human intervention and close proximity of filling & stoppering to lower contamination risk

It meets FDA, EU-GMP Annex 1, and WHO standards for aseptic processing.

What are the key features and optional accessories of the cGMP Vial Filling Machine?

Key Features:

Variable AC frequency drive for speed control
Digital vial counter
In-feed turntable / unscrambler for automatic vial feeding
Online rubber stoppering mechanism
No cross-contamination design
Easy validation for small to large batch production
Overload protection and safety systems

Optional Accessories:

PLC system with Graphical User Interface (HMI)
Inbuilt laminar airflow unit
CIP/SIP capability
Customized change parts for different vial sizes
