Eight Head Vial Filling Machine

Q: What is the production capacity of an Eight Head Vial Filling Machine?

The production speed typically ranges from 80 to 240 vials per minute . The exact output depends on several factors, including the fill volume, the diameter of the vial neck, and the viscosity of the liquid being processed. For most standard 5ml to 10ml vials, you can expect a stable high-speed performance suitable for medium-to-large scale batches.

Q: What "Safety" or "Zero-Waste" features are included?

The machine is equipped with a 'No Vial - No Fill' sensor system. This ensures that if a vial is missing from the sequence or tipped over, the corresponding filling head will not discharge the product. This prevents machinery contamination, saves expensive liquid product, and reduces the need for manual cleaning during a production run.

Description

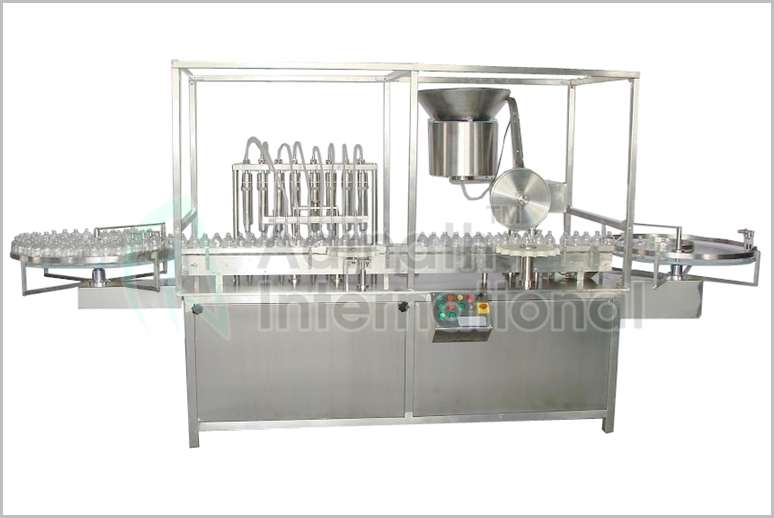

ADINAT Eight Head Vial Filling Machine One or both side turn tables, a S.S. slat conveyor belt, and a special co-eccentric simultaneous gassing and filling system make up the machine. The sterilised dry vials are fed via the Unscramble and appropriately directed on the moving Delrin slat conveyor belt at the necessary speed for the proper placement beneath the filling equipment. The machine is finished in attractive Matt-finished stainless steel construction. The basic unit includes a turntable/unscramble, an SS Stat conveyor belt, very precise and efficient SS 316 syringes, non-toxic synthetic rubber tubing, and an easy-to-reach compact panel.

The risk of contamination is decreased by the minimal distance between the filling and stoppering units. The machines are made to operate under laminar flow protection and in a sterile environment. The machine is based on a servo motor drive and may be operated entirely through a touch screen HMI and PLC control. Vacuum air pressure is used to stop the rubber bungs.

Vial Feeding: Sterilized and siliconized vials are fed via an unscrambler onto a conveyor belt and positioned accurately under the filling station using a star wheel.

Filling Operation: Each of the eight heads independently dispenses liquid via piston or peristaltic pumps, with adjustable stroke lengths for volumes from 2 ml to 250 ml. Nitrogen purging occurs before filling to maintain product integrity.

Stoppering: Immediately after filling, rubber stoppers (up to 20 mm diameter, with ±1% accuracy) are automatically pressed into place using a vacuum bung hold disc and pneumatic system. The minimal distance between filling and stoppering units reduces contamination risks.

Output and Discharge: Filled and stoppered vials are transferred to an outfeed turntable for further processing (e.g., capping or labeling). The machine drives through a high-quality imported gear motor for vibration-free performance.

Salient Features of Eight Head Vial Filling Machine

Suitable for the filling Volume of 2ml to 250ml.
Piston pump/Peristaltic pump aseptic filling.
Filling accuracy of ±0.5% to ±1%.
No cross contamination.
Easy to validate filling system for small/large batch production.
All Contact Parts Made from Stainless Steel 316L & framework by Stainless Steel 304.
Variable A.C. frequency drive for speed adjustment.

Digital Vial Counter for counting production output.
In-feed Turn Table/ Unscrambler for automatic feeding of objects.
On-line Mechanism.
“No Vial – No Filling” System.
“No Vial – Machine Stop” System.
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface. (Optional)

Working Principle of Eight Head Vial Filling Machine

The incoming dry vials (sterilized and siliconized) are fed through the unscrambler and suitably guided on the moving Delrin slat conveyor belt at the required speed of the correct placement below filling unit.

The filling unit consists of Filling Head, Syringes & Nozzles; Syringes & Nozzles are made of AISI SS 316L materials. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ”No Vial-No Filling” operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be increase & decrease by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid reaches to filling nozzles through silicon transparent pipe. Nozzles having up & down movement with help of cam mechanism, and it come down when vial hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers two vials together on conveyor for rubber stoppering operation.

Stoppering unit consist of Star wheel, Vibrator unit and Bowl. The sterilized and siliconized rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to starwheel and move in rotary direction along with starwheel, during movement it picks up the rubber stopper from the exit end of the chute and rubber stopper pressed by fix single pressing roller, which is spring loaded. Then vial further move on conveyor and collected on out feed starwheel for next sealing operation.

Technical Specification of Eight Head Vial Filling Machine

Model	ALVF-120
Filling Heads	Eight
Production Rate	Up to 150 Vials/Minute
Vial Diameter	15mm to 70mm
Vial Height	25mm to 140mm
Filling Precision	±1%
Power Required	2 H.P.
Electrical Characteristics	440 Volts, 3 Phase, 50 Hertz
Overall Dimension	3000mm (L) x 945mm (W) x 1700mm (H)

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Vial Filling Machine

Automatic Vial Filling Machine

High Speed Vial Filling Machine

Vial Liquid Filling Machine

Vial Powder Filling Machine

Automatic Vial Filling and Rubber Stoppering Machine

Lab Scale Vial Filling Stoppering & Cap Sealing Machine

Injectable Vial Powder Filling & Stoppering Machine

Peristaltic Pump based Vial Filling Machine

Applications of Vial Filling Machine

Advantages of Eight Head Vial Filling Machine

Substantial Throughput & Efficiency

High Precision and Accuracy

Versatility & Container Compatibility

Advanced Hygiene & Safety (cGMP Compliant)

Key Features of Eight Head Vial Filling Machine

Construction and Materials: Built with stainless steel (SS 316L) components for durability and corrosion resistance. The filling unit includes eight independent filling heads, syringes, and nozzles made from high-quality SS 316 construction. Both glass and SS syringes are compatible for versatile liquid handling.

Automation and Controls: Equipped with PLC (Programmable Logic Controller) and HMI (Human-Machine Interface) for user-friendly operation. Includes a “No Vial, No Fill” sensor system to prevent liquid wastage, and variable speed controls via AC drives.

Safety and Hygiene: Operates under laminar airflow protection to maintain sterility. All assemblies under the top plate are easily accessible for cleaning and maintenance. Pneumatic modules ensure smooth rubber stoppering without contamination.

Additional Components: Features an infeed turntable, Delrin slat conveyor belt for vial transport, star wheel for precise vial holding during filling, and a vibratory bowl with chute for rubber bung orientation. Nitrogen purging nozzles are integrated for gas flushing to reduce oxygen exposure in sensitive liquids.

FAQ for Eight Head Vial Filling Machine

What is the production capacity of an Eight Head Vial Filling Machine?

The production speed typically ranges from 80 to 240 vials per minute. The exact output depends on several factors, including the fill volume, the diameter of the vial neck, and the viscosity of the liquid being processed. For most standard 5ml to 10ml vials, you can expect a stable high-speed performance suitable for medium-to-large scale batches.

Can this machine handle different vial sizes and fill volumes?

Yes. While the machine is optimized for high-speed consistency, it is designed with flexibility in mind.By usingchange-over parts, you can adjust the machine to handle various vial diameters and heights. Fill volumes are typically adjustable via a PLC (Programmable Logic Controller) or manual syringe settings, depending on whether the model uses a piston or a peristaltic pump system.

How accurate is the filling process across all eight heads?

Precision is a hallmark of this equipment. Most modern eight-head fillers offer a filling accuracy of ±0.5% to 1%. Each of the eight heads can be individually calibrated to ensure uniformity across the entire conveyor row, which is critical for maintaining dosage consistency and reducing product wastage.

Is the machine compliant with international pharmaceutical standards?

Absolutely. Our Eight Head Vial Filling Machines are manufactured to meet cGMP (current Good Manufacturing Practice) standards. All contact parts are made from SS 316L to prevent corrosion and contamination, while non-contact parts are made from SS 304. The design also supports CIP (Clean-in-Place) and SIP (Steam-in-Place) protocols for sterile environments.

What “Safety” or “Zero-Waste” features are included?

The machine is equipped with a “No Vial – No Fill” sensor system. This ensures that if a vial is missing from the sequence or tipped over, the corresponding filling head will not discharge the product. This prevents machinery contamination, saves expensive liquid product, and reduces the need for manual cleaning during a production run.
