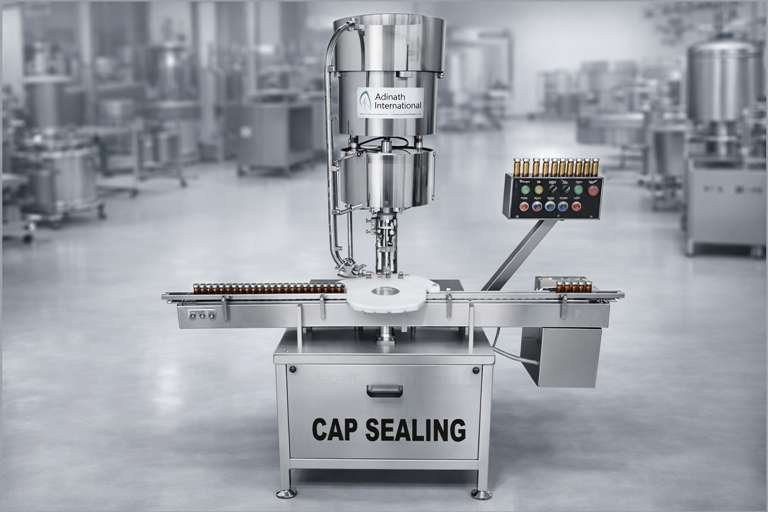

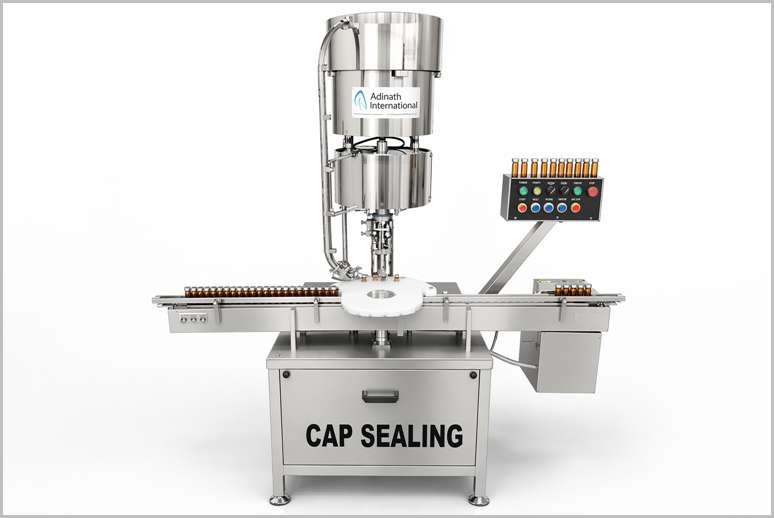

Bottle ROPP Screw Capping Machine is a specialized packaging solution designed to apply Roll-On Pilfer-Proof (ROPP) aluminum caps onto glass, plastic, PET, HDPE, and LDPE bottles with precision and reliability. Also known as an Automatic Bottle ROPP Screw Capping Machine, this equipment forms threads and a tamper-evident band directly onto the aluminum cap shell during the sealing process, delivering a secure, leak-proof, and pilfer-proof closure essential for product safety and consumer trust.
ROPP technology works by placing a smooth aluminum shell over the bottle neck. Precision rollers then apply controlled pressure to shape the cap to match the bottle’s threads while simultaneously creating a breakable security band. This dual action ensures a hermetic seal that protects contents from contamination and clearly indicates if the package has been opened—making the Bottle ROPP Screw Capping Machine a preferred choice in regulated industries.
Engineered for high performance, the machine supports a wide range of production speeds, typically from 20 to 180 bottles per minute depending on the model and configuration. Single-head versions suit smaller batches, while multi-head rotary systems handle higher volumes efficiently. Integrated conveyor systems, automatic cap feeders (orientation or vibratory type), and synchronized star-wheel indexing enable continuous, fully automated operation with minimal operator intervention.
Key features of the Bottle ROPP Screw Capping Machine include precise torque and pressure control, “No Bottle – No Cap” sensors to prevent wastage, overload clutches that protect bottles from damage, and quick-change tooling for fast size changeovers. Adjustable capping heads accommodate various bottle diameters, heights, and shapes, including round and specialty containers. Advanced models incorporate PLC controls and touchscreen HMI interfaces for recipe storage, real-time monitoring, and easy operation.
Built to meet strict cGMP standards, the machine features durable stainless-steel construction (SS 304 cladding with SS 316 contact parts) for superior hygiene, corrosion resistance, and long service life. Easy-to-clean designs, dismantlable hoppers, and robust frames ensure reliability in demanding production environments. These qualities make the equipment highly suitable for pharmaceutical syrups, oral liquids, edible oils, spirits, beverages, chemicals, and cosmetic products.
Manufacturers value the Bottle ROPP Screw Capping Machine for its ability to improve packaging consistency, reduce labor costs, minimize rejects, and enhance overall line efficiency. The combination of accurate sealing, tamper-evident security, and seamless integration with filling and labeling systems delivers measurable improvements in product quality and operational productivity.
With proven engineering expertise and a focus on regulatory compliance, the Bottle ROPP Screw Capping Machine stands as a trusted solution for companies seeking dependable, high-performance capping technology. Whether used as a standalone unit or integrated into a complete packaging line, it provides the precision, durability, and safety modern production demands. Choose a Bottle ROPP Screw Capping Machine to achieve consistent, professional-grade seals that protect your products and strengthen brand reputation in competitive markets.
The filled bottles travel along the conveyor belt and are guided into the in-feed star wheel by the in-feed worm. As the bottles move through the in-feed star wheel, they pick up caps one by one from the delivery chute. The descending rotary sealing heads then grip the bottle necks with the required pressure. Sealing is performed in a programmed roll-on manner. Accurate positioning of the caps is achieved mechanically through a rotating unscrambler that directs the caps correctly into the chute. When the chute is full, the unscrambler drive is automatically disengaged, preventing any damage to the caps. Sealing and threading take place as the rotating sealing head moves, transferring motion to the sealing and threading rollers via the sealing cam. Finally, the sealed bottles are discharged by the exit star wheel onto the outgoing conveyor.
Model | ACSR-60 | ACSR-120 | ACSR-200 |
No. of Capping Heads | Single | Four | Eight |
Production Rate | Up to 50 Containers/Minute | Up to 80 Containers/Minute | Up to 180 Containers/Minute |
Container Diameter: | 24mm to 90mm | 24mm to 90mm | 24mm to 90mm |
Container Height: | 50mm to 250mm | 50mm to 250mm | 50mm to 250mm |
Cap Diameter: | 20mm, 25mm & 28mm with the help of change parts | 20mm, 25mm & 28mm with the help of change parts | 20mm, 25mm & 28mm with the help of change parts |
Power Specification: | 1 H.P. | 1 H.P. | 2 H.P. |
Electrical characteristics | 440 Volts, 3 Phase, 50 Hertz, 4 Wire System | 440 Volts, 3 Phase, 50 Hertz, 4 Wire System | 440 Volts, 3 Phase, 50 Hertz, 4 Wire System |
Conveyor Height | 800mm to 900mm adjustable | 800mm to 900mm adjustable | 800mm to 900mm adjustable |
Optional Accessories | Safety Cabinet Covering Machine | Safety Cabinet Covering Machine | Safety Cabinet Covering Machine |
– | PLC with HMI | PLC with HMI | PLC with HMI |
Overall Dimension | 1500mm (L) X 850mm (W) X 1800mm (H) approx. | 1675 (L) x 1000mm (W) x 1800mm (H) approx. | 2000 (L) x 1000mm (W) x 1800mm (H) approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
Filled bottles move on the conveyor and are guided into the in-feed star wheel by the in-feed worm. Caps are picked up one by one from the delivery chute. Rotary sealing heads descend, apply controlled pressure, and use rollers to form threads and the tamper-evident band on the aluminum cap. Sealed bottles are then discharged by the exit star wheel onto the outgoing conveyor.
The machine typically accommodates bottle diameters from 24 mm to 90 mm and heights from 50 mm to 250–300 mm. It supports ROPP aluminum caps of 20 mm, 25 mm, 28 mm, and 32 mm, with change parts available for different sizes and formats.
Production speed depends on the model. Single-head machines generally handle 20–50 bottles per minute, while multi-head versions (4, 6, or 8 heads) can achieve 80–180 bottles per minute or higher, based on bottle and cap specifications.
Yes. It is built to cGMP standards with stainless steel construction (SS 304 cladding and SS 316 contact parts), hygienic design, and precise sealing performance. It is widely used for oral liquids, syrups, tonics, and other pharmaceutical products requiring tamper-evident closures.
The machine is extensively used in pharmaceutical, food & beverage, liquor & spirits, chemical, pesticide, cosmetic, nutraceutical, and Ayurvedic industries for sealing bottles containing syrups, edible oils, wines, spirits, and similar products.
Yes — Adinath International Bottle ROPP Screw Capping Machine complies to cGMP, MHRA, FDA and WHO-GMP standards, with optional CE marked equipments and 21 CFR Part 11 software compliance for the HMI/PLC. Machine contact parts having Stainless Steel 316L grade materials with validation documents having IQ, OQ, DQ validation protocols as optional. Organization is ISO 9001:2015 certified.
Manufacturing lead time is generally 7 to 14 weeks from order confirmation. Further it takes 2 to 8 weeks for international shipping depending upon destination. Order can be expediate sooner or later as per specific buying requirements. Destination specific certifications like US FDA, EU, ANVISA, SFDA. CE can add 3 to 6 weeks additionally.
Yes, Adinath International Bottle ROPP Screw Capping Machine export this machine to more than 48 countries of this world including America, Europe, Asia, Middle East, Africa, CIS and Australia sub continents. Please visit our clientele page for complete list of our customers worldwide. Located at Ahmedabad, India having world class infrastructure.
Service of skilled engineers and technicians provided for technical support of supplied equipments. Installations, commissioning, training and IQ, OQ, DQ validations performed by qualified engineers. Remote support through video call, phone, email and other modes provided for international installations. Spare parts of “Machine name” stocked at our premises in Ahmedabad and shipped immediately after ordering. Standard 12 months manufacturing warranty included with supplied equipment.
