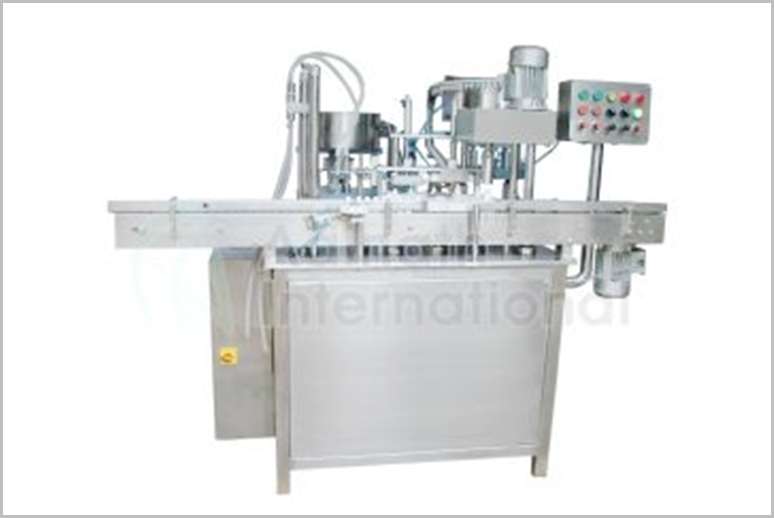

Based in Ahmedabad, Gujarat, Adinath International is a top producer and provider of Automatic Eye Drop Filling Machine. The eye drop filling sealing machine comes with one inner plug sealing head powered by a pneumatic motor and two filling heads. For 5 ml and 30 ml fillings, a speed of 40 bottles per minute is attainable.
Plastic eye drop vials used in eye drop applications can be filled using an automatic eye drop filling machine, such as an eye drop filler and capper. The machine is small and produces more. Filling machines can be used in the biopharmaceutical, biotech, and pharmaceutical industries. Depending on specific needs, nitrogen purging and a class 100 laminar air flow system can be included. Depending on the requirements of the user, either SS 316 piston pumps or peristaltic pumps can be used for the filling mechanism. The machine’s “No Bottle – No Filling system,” “Post and Pre Gasing system,” and motor-powered pneumatic head for plugging are its unique characteristics.
Automatic Eye Drop Filling and Capping Machine One side turntables, a S.S. slat conveyor belt, eccentric pre-gassing, filling, and post-gassing S.S. 316 nozzles, precisely constructed S.S. 316 syringes, silicon rubber tubings, a pneumatic system for inner cap placement, a mechanical orientation type bowl and chute for outer cap placement, an easy-to-reach compact panel, etc. The risk of contamination is decreased because there is less space between filling and stoppering. It is intended to be used under laminar flow protection and to function in a sterile environment. The machine’s un-scrambler was built to remove dead ends and hard-to-clean areas.
Vials loaded on Stainless Steel rotary in-feed turn table. Vials move from turn table to Stainless Steel slate conveyor belt here filling in vials take place by Nozzles. Nozzles fill the vials pre-determined volume of liquid. After filling vials move for next operation where plugging fed into the vibratory bowl are correctly oriented and continuously pushed to the chute inlet. The tightly held vials pick up by system to plug from the chute outlet and moves further pressing operation. Pressing operation is carried out by presser rollers, which ensures complete pressing of plug. After plugging vials move for next operation where sealing is done is same manner as plugging has done. Duly filled & capped vials delivers on outfeed collection tray.
| Model | EFM |
| Filling Range | 5ml to 30ml |
| No. of filling head | Two |
| Output | 20 to 50 vials/minute |
| Contact Parts | Stainless Steel 316 |
| Material construction | Stainless Steel 304 |
| Filling pump type | Volumetric Pump |
| Filling tube | Silicon tubing |
| Vial Diameter | Up to 35mm |
| Vial Height | Up to 60 mm |
| Power Supply | 2 H.P. |
| Electrical Characteristics | 440 Volts, 3 Phase, 50 Hertz |
| Utility Requirement | Air – 15 CFM, 6-8 kg/cm² |
| Overall Dimension | 3000mm (L) x 1600mm (W) x 1700mm (H |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
The standard model offers an output of 20 to 50 bottles per minute (approximately 1,200 to 3,000 bottles per hour), depending on fill volume and bottle size. For 5 ml and 10 ml fillings, it can comfortably achieve around 40 bottles per minute. Speed is adjustable via variable frequency drive.
The machine handles 5 ml to 30 ml filling range. It is suitable for plastic eye drop vials with diameters up to 35 mm and heights up to 60 mm. Quick-change parts are available for different bottle formats, making it versatile for various eye drop formulations.
It provides high filling accuracy of ±1% in single dosing. The machine uses precision SS316 volumetric piston pumps (or optional peristaltic pumps) with silicon tubing, ensuring consistent and accurate dosing for every bottle.
Yes. It is a cGMP-compliant model with all product contact parts made of SS316. It features “No Bottle – No Filling” system, pre- and post-gassing (nitrogen purging) options, and minimal distance between filling and plugging stations. The machine is designed to operate under laminar airflow (Class 100) for sterile production.
