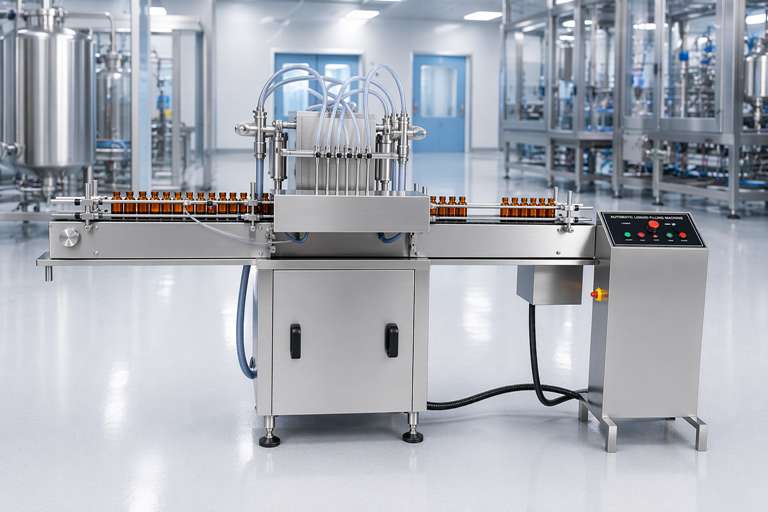

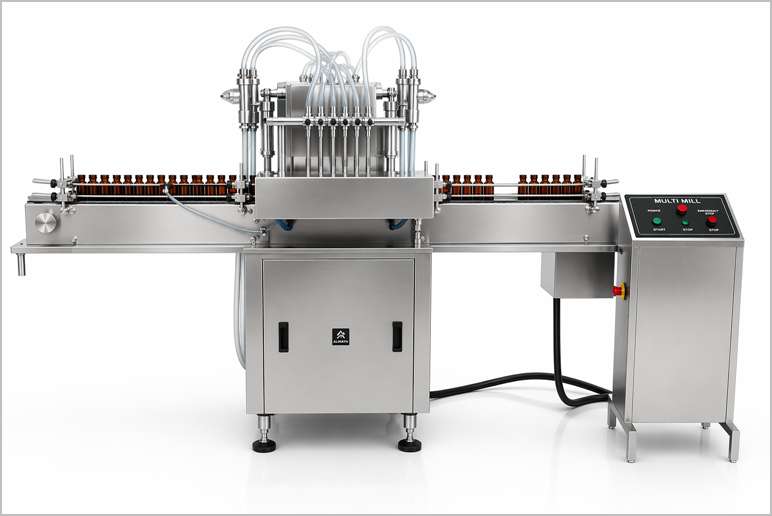

Automatic Liquid Soap Filling Machine

Description

A specialised piece of machinery called an Automatic Liquid Soap Filling Machine is made to fill containers like bottles, jars or tubes with liquid soap, hand sanitisers, dishwashing liquids, or other comparable viscous liquids automatically. These devices improve production efficiency, accuracy, and consistency while reducing manual labour and product waste in a variety of industries, including personal care, domestic cleaning, cosmetics, and pharmaceuticals.

For all of your liquid packing needs, pick Adinath International for some of the best liquid soap filling machines on the market. We provide a range of liquid fillers in addition to cappers, conveyors and labellers to create a whole production line that improves your facility’s productivity and quality. Our equipment is made to fill a wide variety of liquids, including liquid soaps.

Automatic liquid soap filling machines are essential for efficient, precise, and hygienic filling of liquid soap into various containers. They are designed to handle the unique challenges of soap’s viscosity and foaming tendencies, offering customizable solutions for small-scale to high-volume production. By integrating advanced technologies like servo-driven pumps, anti-drip nozzles, and PLC controls, these machines ensure consistent quality, reduced waste, and increased productivity.

Setup: Containers are placed on a conveyor or fed automatically into the filling station.

Filling: The machine dispenses precise amounts of liquid soap using pistons, pumps, or gravity, with nozzles diving into containers to reduce foaming.

Capping/Sealing: Integrated or separate capping machines apply screw-on caps, pump caps, or flip-tops.

Labeling: Optional labeling systems apply branded labels with product information.

Quality Control: Sensors ensure accurate fills and proper container alignment, minimizing waste.

Salient Features of Automatic Liquid Soap Filling Machine

“No Bottle – No Fill” system
All contact parts made of SS316 material with easy removal system for Autoclaving/Sterilization/Cleaning.
Machine construction in SS 304 material.
Diving Nozzle for Foam free filling.
Very High Fill Accuracy.

Automatic In-feed and Exit of Bottles.
Minimum Change Over time.
Unique Free Spinning Bottle Separator- No pneumatic operation.
Built-in A.C. Variable Frequency Drive System.

Working Principle of Automatic Liquid Soap Filling Machine

Bottles are feed on to in-built Infeed turn table, from where it delivered to SS conveyor belt. Conveyor belt transport bottles to filling station. Filling station has Pneumatic bottle stopper for exact bottle neck centering of bottles during filling operation. Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose. The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum use of time. After liquid filling bottles are delivered to capping/labeling machine conveyor for further operations.

Technical Specification of Automatic Liquid Soap Filling Machine

Model No.	AI-BFM 4	AI-BFM 8	AI-BFM 12
Bottle Diameter	Up to 90 mm*	Up to 90 mm*	Up to 90 mm*
Filling Range	10 ml to 1000 ml with help of suitable change parts / Syringe	10 ml to 1000 ml with help of suitable change parts / Syringe	10 ml to 1000 ml with help of suitable change parts / Syringe
Accuracy	+/- 1% Depending on Liquid with Single Dose	+/- 1% Depending on Liquid with Single Dose	+/- 1% Depending on Liquid with Single Dose
Electrical	440 Volts, 3 Phase Power Supply (50 Hz)	440 Volts, 3 Phase Power Supply (50 Hz)	440 Volts, 3 Phase Power Supply (50 Hz)
Power	2 H.P.	3 H.P.	5 H.P.
Production Output	Up to 60 Bottles per minute	Up to 120 Bottles per minute	Up to 180 Bottles per minute
Syringe Filling Range	10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml	10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml	10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml
Conveyor Height	850 to 950 mm	850 to 950 mm	850 to 950 mm
Overall Dimensions	1500 mm (L) x 90 mm (W) x 1550 mm(H)	2000 mm (L) x 900 mm (W) x 1550 mm(H)	2800 mm (L) x 950 mm (W) x 1550 mm(H)
Net Weight	350 kgs. approx.	500 kgs. approx.	700 kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Liquid Filling Machine

Automatic Bottle Filling Machine

Digital Liquid Filling Machine

Semi Automatic Liquid Filling Machine

Automatic Eye Drop Filling Machine

Motion Liquid Filling Machine

Monoblock Liquid Filling & Capping Machine

Aseptic Liquid Filling Machine

Servo Driven Liquid Filling Machine

Applications of Liquid Soap Filling Machine

Advantages of Liquid Soap Filling Machine

Efficiency: Automates filling, reducing labor costs and increasing output speed compared to manual or semi-automatic systems.

Precision: Ensures consistent fill volumes, reducing waste and maintaining product integrity.

Hygiene: Stainless steel construction and easy-to-clean designs meet strict sanitary requirements.

Versatility: Handles a range of viscosities and container types, making it adaptable to various soap formulations and packaging needs.

Reduced Foaming: Specialized nozzles and pump systems minimize foaming, ensuring clean and accurate fills.

Key Features and Components of Automatic Liquid Soap Filling Machine

Filling Mechanism:
- Volumetric Filling: Utilizes piston pumps, servo-driven pumps, or peristaltic pumps to dispense precise volumes of liquid soap, typically ranging from 5 ml to 5 liters or more, depending on the machine. Piston fillers are particularly effective for viscous liquids like soap, ensuring accurate fill levels without foaming.
- Gravity or Overflow Filling: Suitable for low-viscosity soaps or foaming products, these systems ensure consistent fill levels, especially for transparent containers where uniform appearance is critical.
- Specialized Nozzles: Anti-drip and diving nozzles prevent spills and minimize foaming, which is a common challenge with liquid soap. Servo-driven diving nozzles are often used for high-precision filling of foamy liquids.

Automation Level:
- Fully automated operation with minimal human intervention, ideal for high-volume production lines (e.g., 200–16,000 bottles per hour).
- PLC (Programmable Logic Controller) and touchscreen interfaces allow operators to set fill volumes, speeds, and other parameters with high precision .
- Sensors detect empty containers and initiate filling, ensuring seamless operation.

Construction and Materials:
- Typically made of stainless steel (e.g., 316L) for durability, corrosion resistance, and compliance with hygiene standards (GMP-compliant in some models).
- Designed for easy cleaning and maintenance to prevent cross-contamination, especially important for liquid soaps. Quick-disconnect fittings and sanitary components facilitate thorough cleaning.

Container Compatibility:
- Versatile design accommodates various container types and sizes, with adjustable settings for quick changeovers to minimize downtime.
- Bottle guides and centering mechanisms ensure precise alignment under filling nozzles to avoid spillage.

Additional Features:
- Multi-Head Configurations: Machines can have 1 to 20+ filling heads to match production needs, with higher head counts increasing output speed.
- Foam Control: Specialized pumps and slow piston movement reduce foaming, a key concern for liquid soap.
- Integration: Can be paired with capping, labeling, and conveyor systems to form a complete production line, enhancing efficiency.
- Customizable Options: Some models include heating hoppers for hot-fill soaps or explosion-proof designs for flammable liquids.

Production Capacity:
- Varies based on model and configuration, with examples including:
  - 35 bottles per minute for 1-liter containers.
  - 12–18 bottles per minute for 5-liter containers.

FAQ for Automatic Liquid Soap Filling Machine

What is an Automatic Liquid Soap Filling Machine?

An Automatic Liquid Soap Filling Machine is a high-precision monoblock filling system designed for accurate filling of viscous liquids like liquid soap, handwash, shampoo, sanitizer, lotion, and other personal care products into bottles and containers. It performs filling, and can be integrated with capping for efficient production.

What is the production capacity of the Automatic Liquid Soap Filling Machine?

The machine is available in 4, 6, 8, and 12 head models with output ranging from 40 to 150 bottles per minute, depending on fill volume and product viscosity. For example, a 6-head model can typically fill 60–80 bottles per minute for 500 ml liquid soap bottles. Speed is adjustable through a variable frequency drive.

What bottle sizes and fill volumes does the machine support?

It supports bottle sizes from 100 ml to 1000 ml (up to 2000 ml with special change parts). The machine can handle HDPE, PET, and other plastic bottles with diameters up to 90 mm. Quick-change parts allow easy switching between different bottle shapes and sizes.

Is the machine cGMP compliant and customizable?

Yes. The machine is built to cGMP standards and is suitable for cosmetic, pharmaceutical, and personal care industries. It can be customized with servo-driven filling, PLC with HMI, CIP (Clean-In-Place) system, nitrogen flushing, and automatic capping integration. IQ/OQ documentation is available for validation.

What types of products can this machine fill?

This machine is ideal for filling:

Liquid soap and handwash
Shampoo and conditioners
Sanitizers and disinfectants
Lotions and body washes
Floor cleaners and detergents
Other viscous and semi-viscous liquids

It is specially designed to handle foaming and viscous products effectively.
