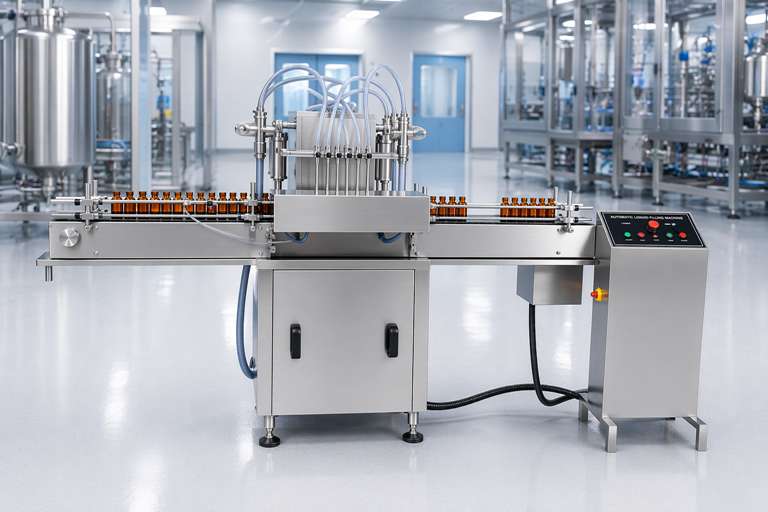

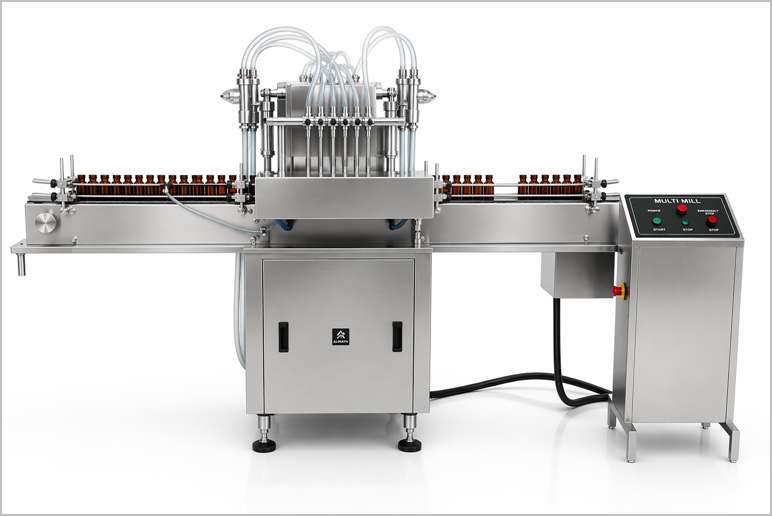

Automatic Oral Liquid Filling Machine

Description

In today’s fast-paced pharmaceutical and healthcare manufacturing landscape, an Automatic Oral Liquid Filling Machine stands as an essential piece of automated bottle filling equipment. Designed for high-accuracy filling of aqueous solutions, foamy liquids, and semi-viscous formulations, this advanced liquid filler ensures consistent, reliable performance across diverse production requirements. Whether you’re manufacturing cough syrups, liquid suspensions, antacids, or nutritional tonics, an automatic oral liquid filling machine streamlines operations while maintaining strict quality standards.

Adinath’s range of Oral Liquid Filling Machines is engineered to handle a wide variety of container materials, including PET, plastic, glass, aluminium, stainless steel, and copper. The equipment accommodates bottles, jars, and other solid packaging formats, making it a versatile solution for pharmaceutical companies, contract manufacturers, and nutraceutical producers. Its robust construction features a stainless steel slat conveyor belt, precision filling needles, piston pumps, and a sturdy foundation—components built for durability, hygiene, and long-term industrial use.

Oral liquids remain a cornerstone of modern healthcare, offering easy administration and rapid absorption for patients of all ages. As demand for cough syrups, suspensions, and other liquid medications grows, manufacturers face the complex challenge of precise, contamination-free filling into containers that vary in shape, size, and material. Manual filling is inefficient, inconsistent, and prone to errors. This is where state-of-the-art automatic liquid filling machines deliver transformative results. Adinath Oral Liquid Filling Equipment combines cutting-edge automation with user-friendly design. The result? Significantly improved filling accuracy, higher productivity, and enhanced operational efficiency. Its high level of automation makes it perfectly suited to evolving industry demands, including stringent regulatory compliance (GMP, FDA) and the need for rapid changeovers between batches.

Businesses that adopt Adinath’s automatic bottle fillers report substantial gains in throughput, reduced labor costs, and consistent product quality. The simple structure, easy-to-use mechanism, and straightforward handling lower the learning curve for operators while delivering professional-grade performance. In an era where efficiency and compliance are non-negotiable, this machine helps manufacturers meet growing market demands without sacrificing safety or precision. Whether you operate a small-scale facility or a large pharmaceutical plant, choosing the right Oral Liquid Filling Machine can be a game-changer for your production line. Its combination of advanced technology, robust engineering, and operational simplicity ensures long-term reliability and return on investment. Ready to optimize your liquid packaging process? Explore Adinath’s range of high-performance oral liquid filling solutions designed for the future of pharmaceutical manufacturing.

Salient Features of Automatic Oral Liquid Filling Machine

“No Bottle – No Fill” system
All contact parts made of SS316 material with easy removal system for Autoclaving/Sterilization/Cleaning.
Machine construction in SS 304 material.
Diving Nozzle for Foam free filling.
Very High Fill Accuracy.

Automatic In-feed and Exit of Bottles.
Minimum Change Over time.
Unique Free Spinning Bottle Separator- No pneumatic operation.
Built-in A.C. Variable Frequency Drive System.

Working Principle of Automatic Oral Liquid Filling Machine

Bottles are feed on to in-built Infeed turn table, from where it delivered to SS conveyor belt. Conveyor belt transport bottles to filling station. Filling station has Pneumatic bottle stopper for exact bottle neck centering of bottles during filling operation. Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose. The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum use of time. After liquid filling bottles are delivered to capping/labeling machine conveyor for further operations.

Technical Specification of Automatic Oral Liquid Filling Machine

Model No.	AI-BFM 4	AI-BFM 8	AI-BFM 12
Bottle Diameter	Up to 90 mm*	Up to 90 mm*	Up to 90 mm*
Filling Range	10 ml to 1000 ml with help of suitable change parts / Syringe	10 ml to 1000 ml with help of suitable change parts / Syringe	10 ml to 1000 ml with help of suitable change parts / Syringe
Accuracy	+/- 1% Depending on Liquid with Single Dose	+/- 1% Depending on Liquid with Single Dose	+/- 1% Depending on Liquid with Single Dose
Electrical	440 Volts, 3 Phase Power Supply (50 Hz)	440 Volts, 3 Phase Power Supply (50 Hz)	440 Volts, 3 Phase Power Supply (50 Hz)
Power	2 H.P.	3 H.P.	5 H.P.
Production Output	Up to 60 Bottles per minute	Up to 120 Bottles per minute	Up to 180 Bottles per minute
Syringe Filling Range	10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml	10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml	10ml to 50ml,50ml to 100ml, 100ml to 250ml and 250ml to 500ml
Conveyor Height	850 to 950 mm	850 to 950 mm	850 to 950 mm
Overall Dimensions	1500 mm (L) x 90 mm (W) x 1550 mm(H)	2000 mm (L) x 900 mm (W) x 1550 mm(H)	2800 mm (L) x 950 mm (W) x 1550 mm(H)
Net Weight	350 kgs. approx.	500 kgs. approx.	700 kgs. approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Liquid Filling Machine

Automatic Bottle Filling Machine

Digital Liquid Filling Machine

Semi Automatic Liquid Filling Machine

Automatic Eye Drop Filling Machine

Motion Liquid Filling Machine

Monoblock Liquid Filling & Capping Machine

Aseptic Liquid Filling Machine

Servo Driven Liquid Filling Machine

Applications of Oral Liquid Filling Machine

Pharmaceutical Industry
Herbal Industry
Nutraceutical Industry
Ayurvedic Industry
Food Industry
Biotech Industry
Chemical Industry
Cosmetic Industry

Advantages of Automatic Oral Liquid Filling Machine

Increased Productivity: High-speed filling (up to 120+ bottles per minute) allows companies to meet large orders efficiently.

Accuracy and Consistency: Ensures precise fill volumes, reducing product waste and ensuring customer satisfaction.

Hygiene and Safety: Stainless steel construction and contamination-free designs meet strict industry standards.

Flexibility: Adjustable settings and modular designs accommodate various products and container types.

Cost Savings: Automation reduces labor costs and minimizes overfilling, improving ROI.

Key Features of Automatic Oral Liquid Filling Machine

Automation:
- Fully automated systems guide, organize, fill, and release bottles without constant human intervention, often integrated into complete packaging lines with capping, labeling, and conveyor systems.
- Equipped with sensors and controls (e.g., “No Bottle No Fill” systems) to detect empty containers and dispense precise amounts, stopping operation if no container is present to prevent waste.

Filling Technologies:
- Volumetric Filling: Uses pistons, pumps, or flowmeters to dispense a precise volume of liquid, ideal for consistent dosing across various viscosities.
- Vacuum-Level Filling: Draws liquid into containers under vacuum conditions to achieve consistent fill heights, particularly suited for thin liquids like beverages or solvents in clear bottles.
- Gravity Filling: Utilizes gravity to fill free-flowing liquids, often with adjustable nozzles and float valves to control flow and prevent overflow.
- Peristaltic Pump Filling: Ensures hygienic filling as liquid only contacts the tubing, ideal for pharmaceuticals or cosmetics to prevent cross-contamination.

Precision and Accuracy:
- Offers high filling accuracy, typically ±0.2% to ±1%, ensuring consistent product volumes and minimizing waste.
- Digital control panels or PLC systems, like OMRON PLC, allow precise adjustments for fill volume, speed, and container size.

Versatility:
- Handles a wide range of liquid viscosities, from thin liquids (e.g., water, juices, solvents) to viscous products (e.g., creams, sauces, syrups) and even liquids with particulates.
- Accommodates various container types (glass, plastic, bottles, jars) and sizes, typically ranging from 5ml to 10 liters, with adjustable settings for quick changeovers.

Construction and Hygiene:
- Built with food-grade stainless steel or HDPE for corrosive environments, ensuring durability and compliance with hygiene standards.
- Contact parts are often autoclavable or made of sanitary materials like Teflon or Viton, ideal for pharmaceutical, food, or cosmetic applications.
- Features like drip-free nozzles and quick-disconnect fittings facilitate easy cleaning and reduce contamination risks.

Speed and Efficiency:
- Capable of filling up to 80–120 bottles per minute (4,800–7,200 per hour), depending on the model, liquid viscosity, and container size.
- Inline or rotary designs cater to different production scales, with rotary fillers achieving higher speeds (up to 300 bottles per minute).

Additional Features:
- Touchscreen displays for real-time monitoring of production metrics.
- Programmable settings for storing filling programs, enabling quick adjustments for different products or bottle sizes.
- Integration with conveyors, capping, and labeling systems for a seamless production line.
- vSafety features like emergency stop buttons and adjustable gating cylinders for precise container handling.

FAQ for Automatic Oral Liquid Filling Machine

What is an Automatic Oral Liquid Filling Machine?

The Automatic Oral Liquid Filling Machine is a high-precision volumetric filler designed for accurately filling oral liquids such as syrups, suspensions, cough syrups, and other pharmaceutical or nutraceutical products into bottles. It features a stainless steel slat conveyor, diving nozzles, piston pumps/syringes, and supports integration with capping and labeling machines for complete production lines.

What bottle sizes and fill volumes can the machine handle?

The machine handles bottles with diameters up to 90 mm and filling ranges from 10 ml to 1000 ml (using suitable change parts/syringes). It is available in 4, 8, and 12 head models with production outputs of up to 60, 120, and 180 bottles per minute respectively, depending on the model and liquid characteristics.

How does the Automatic Oral Liquid Filling Machine work?

Bottles are fed via an infeed turntable onto the conveyor belt. Pneumatic stoppers center the bottles under the filling station. Diving nozzles descend into the bottles and rise gradually during filling to minimize foaming. Precision piston pumps dispense the exact volume, after which bottles move to capping or labeling. It includes a “No Bottle – No Fill” system to prevent wastage.

What are the key features and construction details?

Key features include a “No Bottle – No Fill” system, all contact parts in SS316 (easily removable for sterilization), machine frame in SS304, diving nozzles for foam-free filling, very high fill accuracy (±1%), automatic infeed/exit, minimum changeover time, unique free-spinning bottle separator, and built-in AC variable frequency drive.

What industries and liquids is this machine suitable for?

It is ideal for the Pharmaceutical, Herbal, Ayurvedic, Nutraceutical, Food, Biotech, Chemical, and Cosmetic industries. The machine handles aqueous solutions, foamy liquids, semi-viscous solutions, and various oral liquid formulations in PET, glass, HDPE, and other containers.
