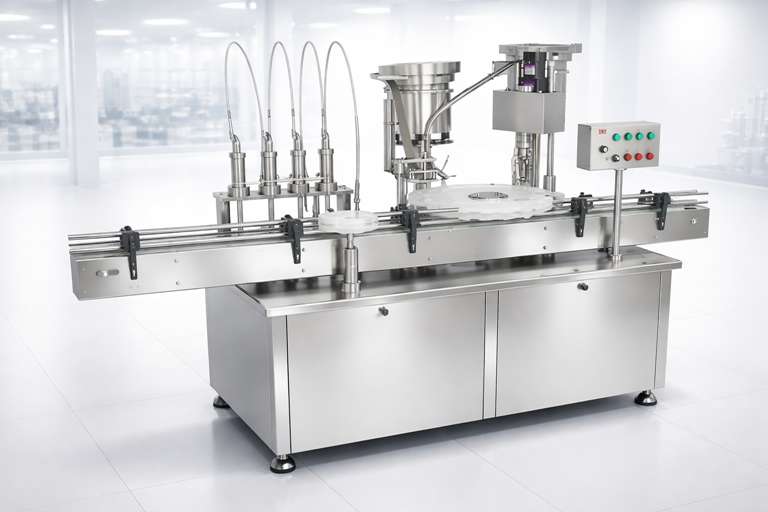

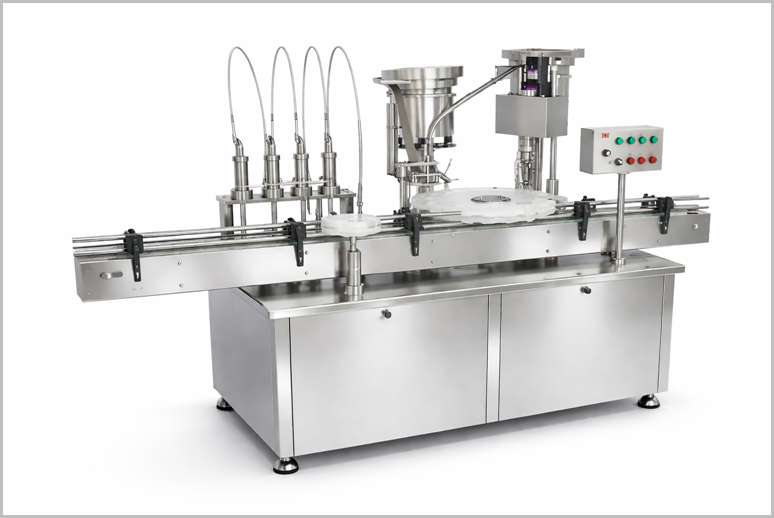

Perfume Filling Machine

Description

By offering a premium selection of Perfume Filling Machine, we have established a unique and prosperous position in the market. Our highly qualified experts create our machine using tried-and-true components and cutting-edge technology in compliance with industry standards. Bottles are placed into the filling heads of these machines, and the head fills the bottle according to the predetermined level. To satisfy consumer preferences, this machine is offered in a variety of specifications.

Our services are produced in accordance with the pertinent industry requirements as a leading manufacturer of perfume filling machines. To achieve the fastest speeds and the most precisely filled bottles, we use the newest technology and a sophisticated equipment. A wide range of bottle sizes, fill quantities, and perfume types are easily recognised by these devices.

We are one of the most sought-after producers and suppliers of equipment in industries including packaging, cosmetics, liquid and perfume filling machines, and semi-automated and fully automated playing card machines. Our products are renowned for their sturdy design, dependability, and long lifespan.

Salient Features of Perfume Filling Machine

Suitable for the filling 2ml to 10ml.
Piston pump filling with accuracy of ±1%.
No cross contamination.
All Contact Parts Made from S.S 316 & framework by S.S. 304.

A.C. Variable Drive for speed adjustment.
“No Bottle - No Filling” system.
Easy to operate.

Working Principle of Perfume Filling Machine

The incoming dry bottles are fed on Stainless Steel rotating table in bulk. Bottles move further at the required speed of the correct placement below filling unit. The filling unit consists of filling head, syringes & nozzles uses for filling. Syringes are made of Stainless Steel 316 construction. Bottle Stopper is provided which holds the bottle during filling operation. A sensor is provided for ”No Bottle-No Filling” operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be increased & decreased by adjusting stroke length of piston. Syringes are having non-return valve for sucking & delivering situation to avoid volume variation. Liquid reaches to filling nozzles through silicon transparent pipe. Nozzles are having up & down movement with help of cam mechanism and it go down when starwheel hold the bottle and starts filling when it starts to move up. After completion of filling operation, bottles further move on big rotary starwheel in which operator has to put caps on to the bottles by hand. Further there is one Pneumatic Pressing Station where cap will be fixed by Pneumatic Pusher.

Duly Filled and Capped bottles get collected onto outfeed collection tray.

Technical Specification of Perfume Filling Machine

Model No.	ALBFC – 40
Production Rate	Up to 2400 bottles/hour
Fill Capacity	2 ml to 10 ml
Accuracy	±1% to the filling volume
Optional Accessories	Programmable Logic Control (System) with MMI Safety Cabinet covering full machine
Power Specification	1 H.P., 3 Phase, 4 Wire System, 50 Hertz
Overall Dimension	1800mm (L) x 850mm (W) x 1500mm (H) approx.

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Liquid Filling Machine

Automatic Bottle Filling Machine

Digital Liquid Filling Machine

Semi Automatic Liquid Filling Machine

Automatic Eye Drop Filling Machine

Motion Liquid Filling Machine

Monoblock Liquid Filling & Capping Machine

Aseptic Liquid Filling Machine

Servo Driven Liquid Filling Machine

Applications of Perfume Filling Machine

Advantages of Perfume Filling Machine

Exceptional Filling Accuracy & Consistency

Foam-Free & Drip-Free Filling

Superior Hygiene & GMP Compliance

High Production Speed & Efficiency

Cost Savings & Reduced Product Wastage

Key Features of Perfume Filling Machine

High Filling Accuracy: ±1% accuracy depending on liquid characteristics, ensuring consistent volume in every bottle.

Foam-Free Filling: Diving nozzles descend into the bottle and rise gradually during filling to prevent foaming and spillage.

Hygienic Design: All product contact parts are made of SS316 with easy removal for cleaning and sterilization. Machine frame in SS304 with matt finish.

Versatile Operation: Handles a wide range of fill volumes from 10 ml to 1000 ml using suitable change parts/syringes. Supports glass, PET, and other perfume bottles up to 90 mm diameter.

Efficient Production: Available in 4, 8, and 12 head models with outputs up to 60, 120, and 180 bottles per minute respectively.

User-Friendly: Minimum changeover time, unique free-spinning bottle separator, built-in AC variable frequency drive, automatic infeed and exit of bottles.

Safety & Reliability: “No Bottle – No Fill” system prevents wastage, pneumatic bottle stoppers for precise centering, and synchronized drives for smooth operation.

FAQ for Perfume Filling Machine

What is a Perfume Filling Machine?

The Perfume Filling Machine is a high-precision automatic volumetric liquid filler designed for accurately filling perfumes, fragrances, essential oils, and other low-viscosity cosmetic liquids into bottles. It features diving nozzles for foam-free and drip-free filling, SS316 contact parts, and supports integration with capping and labeling machines for complete perfume packaging lines.

What bottle sizes and fill volumes can the Perfume Filling Machine handle?

The machine accommodates bottles with diameters up to 90 mm and filling ranges from 10 ml to 1000 ml using suitable change parts/syringes. It is available in 4, 8, and 12 head models with production outputs of up to 60, 120, and 180 bottles per minute respectively.

How does the Perfume Filling Machine work?

Bottles are fed via an infeed turntable onto the SS conveyor belt. Pneumatic stoppers center the bottles under the filling station. Diving nozzles descend into the bottle and rise gradually during filling to minimize foaming and preserve fragrance quality. Precision piston pumps dispense the exact volume, followed by a “No Bottle – No Fill” system to prevent wastage.

What are the key features of the Perfume Filling Machine?

Key features include the “No Bottle – No Fill” system, all contact parts in SS316 (easily removable for cleaning/sterilization), SS304 machine frame, diving nozzles for foam-free filling, very high fill accuracy (±1%), automatic infeed/exit, minimum changeover time, unique free-spinning bottle separator, and built-in AC variable frequency drive.

What industries and liquids is the Perfume Filling Machine suitable for?

It is ideal for the Cosmetic, Perfume & Fragrance, Pharmaceutical, Herbal, Nutraceutical, Ayurvedic, Food, Biotech, and Chemical industries. The machine is particularly suited for filling delicate, low-viscosity liquids like perfumes, aftershaves, essential oils, and alcohol-based solutions while maintaining hygiene and precision.
