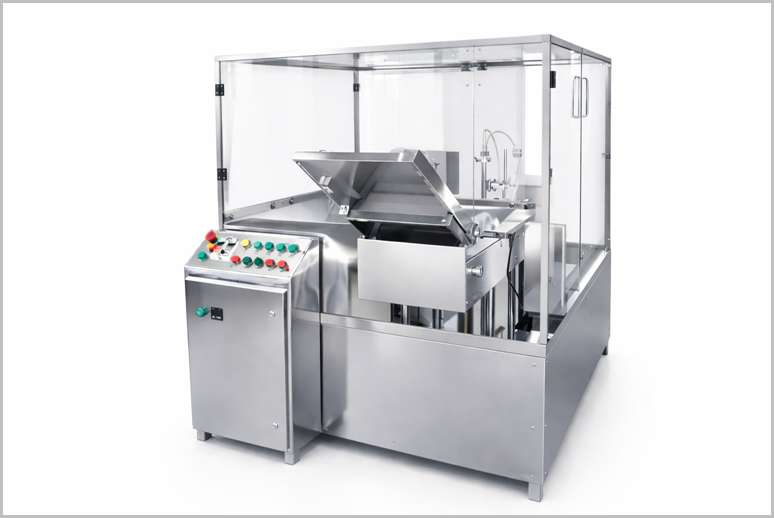

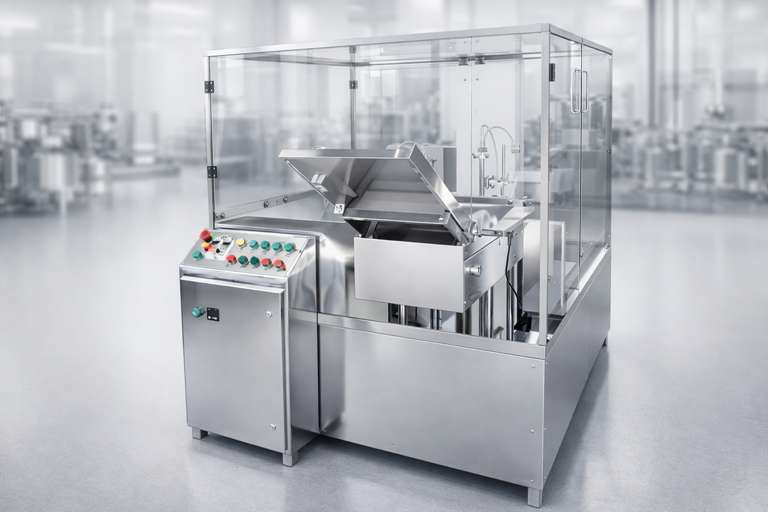

We are a manufacturer, supplier, and exporter of Automatic External Ampoule Washing Machine utilised in the pharmaceutical industry. The machine, which washes the ampoule’s exterior, is based on the principle of rotary continuous motion. The machine features four washing stations. Ampoules from the loading tray are appropriately spaced during the Automatic External Ampoule washing machine’s sequence of operation with the aid of a feed worm. The ampoule is then placed in a revolving wheel for cleaning.There are two washing stations on the product revolving wheel. The first washing station is the tap water station, however you can also use detergent wash if there is more dirt.The second washing technique only uses tap water. There are two washing stations available on the last feed-worm. This ensures that no water droplets remain on the container’s exterior by blasting both hot and dry air.
The Automatic External Ampoule Washing Machine is developed to wash the exterior surface of cylindrical containers, such as ampoules, in accordance with the highest industry requirements, guaranteeing the highest level of cleanliness and hygiene for your products. The machine ensures a comprehensive and effective washing process with its exceptional four-stage washing capacity (Detergent Water, Tap Water, Air Wash, and Heating). Our machine’s design places a strong emphasis on customisation, enabling you to modify the washing sequence to suit your unique needs. We recognise that every customer has different needs, and our machine is designed to adjust to meet those needs while producing the desired washing outcomes.
With the Automatic External Ampoule Washing Machine, discover the power of modern innovation. We are dedicated to improving your operational effectiveness, quality, and customer satisfaction as your dependable manufacturing solutions partner.
This advanced ampoule external washing machine automates the entire process with sheer ease and includes 4 key stages of cleaning. The stages include cleaning with a washing medium such as recycled water, air wash, Demineralized Water/Water for Injection and final air wash. Known for its flexibility the machine allows the user to change the sequence according to his or her specific needs. This machine is profusely uses in the pharmaceutical and injectable industries.
The machine comprises wire mesh conveyor on which ‘to be cleaned’ ampoules are properly fed. These ampoules are then transported from the in-feed worm for the washing process. Now the ampoules are washed using a water jet and dried using an air jet. A set of spray nozzles is fitted on conveyor for water jet. Besides, a set of knife blocks are provisioned on each conveyor for air-jet. These knives are used for the purpose of spraying air. Once the washing and drying process is over, the ampoules are forwarded to the outfeed collection tray. Ampoule external washer is also facilitated with a special arrangement to ensure proper drying of each ampoule from the bottom side.
Input Specification | 1ml to 20ml ampoules |
Application | Decontamination, external washing and drying |
Operation mode | Continuous motion |
MOC | Contact Part SS 316L or Food Grade Material. Non contact parts SS 304 or MS cladded with SS 304 |
Output | Up to 50 ampoules/minute (Either On-line or with Tray Collection System) |
Required Line Pressure | 1.5 kgs. |
Dimensions | As per Layout |
Working height | 900 mm ± 50mm |
Power Supply | 0.75 H.P. |
Electric Characteristics | 440 volts, 3 phase, 50hertz, 4 Wire system with separate earthing |
Compressed Air supply | Filtered Air at 6. bar g. for instrumentation sterile filtered air (0.01um) at 4 bar g. (To be provided by Customer) |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
This machine is widely used in the pharmaceutical industry for cleaning the external surface of filled and sealed ampoules containing injectable drugs, vaccines, or sterile solutions. It is also suitable for:
It helps maintain product sterility, improves appearance, and ensures compliance during downstream processes like labeling.
The machine offers an output of up to 50 ampoules per minute. It handles 1 ml to 20 ml glass ampoules. The speed is adjustable via an AC frequency drive, making it ideal for medium-scale production lines. It can operate online with a filling & sealing machine or offline with tray collection.
The machine provides four-stage washing with flexible sequences:
Key features include:
Built as a complete cGMP model, the machine uses AISI 316L Stainless Steel for contact parts and features smooth finishes to minimize contamination risks. The external-only washing with thorough drying (including hot air) prevents water droplets, ensuring perfect labeling and maintaining sterility of filled ampoules. It comes with optional 21 CFR Part 11 compliant HMI, password protection, printing facility, and full IQ/OQ/DQ documentation. The acrylic cabinet and auto-draining system enhance operator safety and hygiene.
