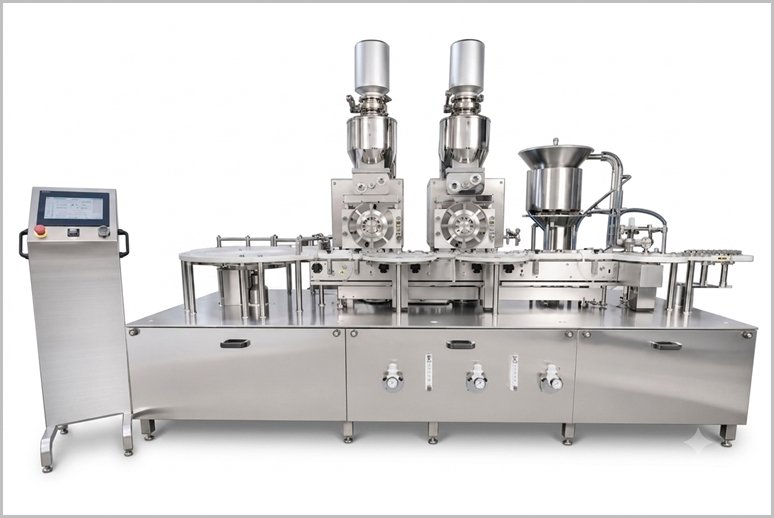

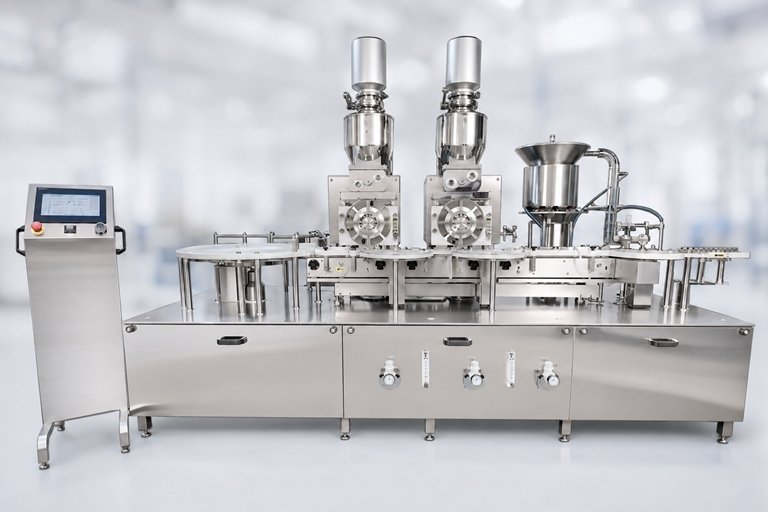

Dry Powder Injection Filling Machine is specialized aseptic pharmaceutical equipment designed for the precise filling of sterile dry powders into glass vials under controlled sterile conditions. This high-accuracy system dispenses exact doses of injectable powder and immediately follows with rubber stoppering or sealing to create a secure, airtight closure. Widely used in sterile manufacturing, the Dry Powder Injection Filling Machine supports the production of moisture-sensitive formulations that cannot be stored as ready-to-use liquids.
The core technology relies on a vacuum-pressure powder dosing system. A precision-engineered powder wheel with multiple ports and pistons draws sterile powder from the hopper using controlled vacuum. An adjustable doctor blade removes excess material to achieve consistent volumetric accuracy. The measured dose is then gently flushed into each vial with sterilized compressed air or nitrogen gas. Integrated rubber stoppering completes the process on the same monoblock platform, minimizing contamination risk and streamlining production. All product-contact parts are manufactured from SS 316L stainless steel, allowing easy removal and autoclaving for full aseptic compliance.
Key performance parameters of a modern Dry Powder Injection Filling Machine include filling accuracy of ±1% to ±3% (depending on powder bulk density and humidity control, ideally maintained below 25–28% RH), fill ranges from 50 mg to several grams, and compatibility with vial sizes from 5 ml to 100 ml or larger. Production output typically ranges from 60–100 vials per minute on single-head models and up to 200–240 vials per minute on high-speed double-head configurations. Advanced features such as servo-driven controls, “no vial–no fill” interlocks, tool-less adjustments, and optional online checkweighing further enhance reliability and efficiency.
Experience from pharmaceutical production environments demonstrates that the Dry Powder Injection Filling Machine delivers consistent dosing, reduced powder wastage, and smooth operation even with free-flowing or cohesive powders. Operators benefit from rapid changeovers, positive vial transport that keeps containers upright, and compact designs that fit efficiently within cleanroom or isolator setups. Compared with full lyophilization, dry powder filling requires less energy and infrastructure while still providing excellent long-term product stability.
Expertise is evident in the machine’s engineering. Vacuum-pressure dosing avoids the shear forces and frictional heat of traditional auger systems, protecting sensitive active pharmaceutical ingredients. Hygienic design principles, precise environmental controls, and validated process capabilities reflect deep knowledge of powder flow behavior, aseptic processing requirements, and critical quality attributes of injectable products.
Authoritativeness is reinforced by the widespread adoption of Dry Powder Injection Filling Machines across regulated facilities worldwide. These systems are built to meet cGMP standards and support compliance with FDA, WHO-GMP, and other international regulatory expectations. Leading equipment manufacturers provide comprehensive documentation, performance data, and support for installation, operational, and performance qualification (IQ/OQ/PQ).
Trustworthiness is embedded in every design element. Sterile material surfaces, safety interlocks that prevent incomplete fills, controlled humidity and airflow conditions, and highly repeatable dosing all contribute to product integrity and patient safety. When operated under validated procedures, the Dry Powder Injection Filling Machine consistently produces vials that meet label claim and remain free from microbial or particulate contamination until reconstitution.
In summary, the Dry Powder Injection Filling Machine offers pharmaceutical manufacturers a precise, cost-effective, and fully compliant solution for sterile powder filling of antibiotics, antivirals, biologics, and other sensitive injectable formulations. By combining advanced vacuum-pressure technology, robust aseptic design, and proven operational performance, it remains a trusted cornerstone of modern parenteral manufacturing lines.
Sterilized powder is held in the powder hopper, where a pair of mechanical agitators continuously mix it to maintain consistent flow properties and uniform bulk density. Positioned directly below the hopper is a precision powder wheel containing twelve ports. This wheel rotates at a carefully controlled, pre-set speed with virtually zero clearance from the hopper outlet. Each port houses a piston, and a vacuum plate is mounted immediately behind the wheel. Spring pressure keeps the vacuum plate in firm contact with the powder wheel, ensuring no gaps exist. As the wheel rotates, vacuum draws an exact volume of powder into each port. The fill volume is determined by the length of the piston, allowing different dose sizes to be achieved. Any excess powder is cleanly removed by a doctor blade that can be adjusted from the outside without the need to remove the powder hopper.
Vacuum continues to retain the powder inside the port as the wheel indexes forward. When a filled port reaches the position directly above the vial, a timed pulse of sterilized low-pressure compressed air (or nitrogen) is released. This pulse gently ejects the powder from the port into the container, delivering one precise dose at a time.
Immediately after filling, a vial separator spaces the containers evenly on the conveyor and advances them toward the stoppering station. Sterilized, siliconized rubber stoppers are stored in a vibratory bowl, where they are oriented and fed into a vertical chute that keeps them neatly stacked. Each vial is firmly gripped between a pair of timing belts so that it can pick up a stopper from the bottom of the chute. The vial then passes between two pressing rollers that firmly seat the stopper, creating a tight and secure seal.
Models | APF 12S | APF 12D |
Production Output | Up to 100 vials/minute | Up to 200 vials/minute |
Fill Volume | 50 mg. to 10grams | 50 mg. to 10 grams |
Vial Size | 5ml to 250ml | 5ml to 250ml |
Filling Accuracy | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Injectable Powder | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Injectable Powder |
Power Load | 3.5 H. P. | 4.5 H. P. |
Overall Dimension | 2600mm (L) X 1100mm (W) X 1800mm (H) approx. | 3000mm (L) X 1100mm (W) X 1800mm (H) approx. |
Net Weight | 500 kgs. approx. | 700 kgs. approx. |
Gross Weight | 750 kgs. approx. | 950 kgs. approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
The primary purpose of a Dry Powder Injection Filling Machine is to accurately and aseptically fill precise doses of sterile dry powder into glass vials and immediately seal them with rubber stoppers under controlled sterile conditions.
This specialized equipment enables pharmaceutical manufacturers to package moisture-sensitive injectable drugs — such as certain antibiotics, antivirals, and biologics — in a stable dry powder form. These formulations cannot be stored as ready-to-use liquids due to chemical instability or limited shelf life. By filling the powder under aseptic conditions and creating an airtight closure, the machine ensures the product remains sterile, potent, and protected until it is reconstituted with a suitable diluent just before administration.
In short, the Dry Powder Injection Filling Machine serves as a critical link in sterile injectable manufacturing, combining high-precision dosing, contamination control, and efficient sealing to deliver safe, stable, and regulatory-compliant dry powder injectables.
The machine uses a vacuum-pressure dosing system. Sterilized powder is drawn from a hopper into precision ports on a rotating powder wheel by vacuum. Excess powder is removed by a doctor blade, and a timed pulse of sterilized air or nitrogen ejects the exact dose into the vial. Rubber stoppers are then applied and seated for a secure closure.
It is commonly used for beta-lactam antibiotics, acyclovir, spray-freeze-dried pellets, biologics, and other injectable formulations that are unstable in liquid form. The machine also handles crystalline powders and excipient-blended products.
Filling accuracy is typically ±1% to ±3%, depending on the powder’s bulk density, flow characteristics, and controlled humidity levels (usually maintained below 25–28% RH).
Most models accommodate glass vials from 5 ml to 100 ml (some up to 250 ml) and fill weights ranging from 50 mg to several grams per dose. Multi-dosing is possible with change parts for higher fill quantities.
Single-head models generally produce 60–100 vials per minute, while high-speed double-head versions can reach 200–240 vials per minute, depending on fill volume, powder properties, and vial size.
Dry powder filling is more cost-effective than full lyophilization. It requires less energy, shorter processing times, and lower infrastructure investment while still providing excellent product stability and preserving drug efficacy.
Yes. All product-contact parts are made of SS 316L stainless steel and are designed for easy removal and autoclaving to maintain full aseptic conditions and cGMP compliance.
Yes. These machines are built to cGMP standards and support compliance with FDA, WHO-GMP, and other international regulatory requirements for sterile injectable manufacturing.
Yes. It is typically supplied as a monoblock unit (filling + stoppering) and can be seamlessly connected with vial washing machines, sterilization tunnels, capping systems, inspection equipment, and labeling machines to form a complete sterile powder filling line.
