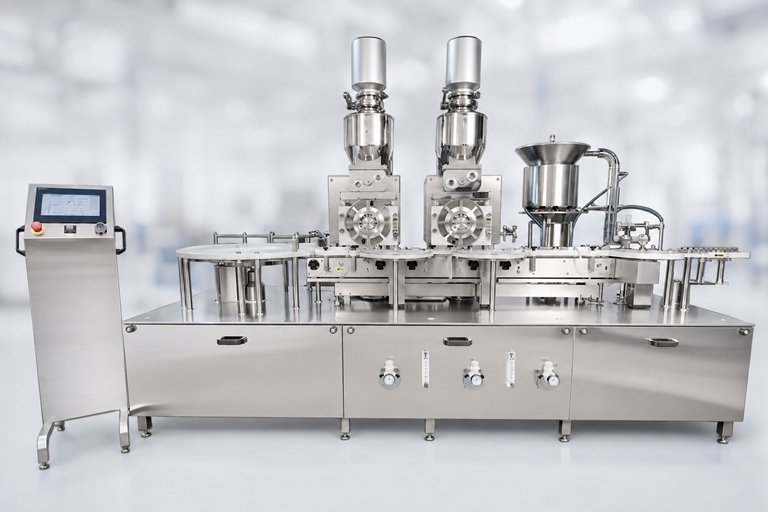

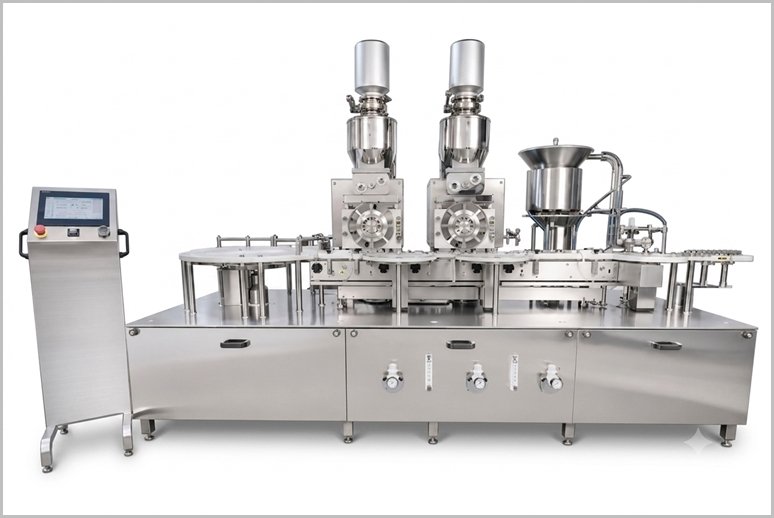

Injectable Vial Powder Filling Machine is a specialized pharmaceutical equipment designed for precise, sterile filling of dry powder into glass or plastic vials used for injectable medications. In modern pharmaceutical manufacturing, accuracy, sterility, and regulatory compliance are non-negotiable. This machine meets those demands by combining advanced automation with aseptic processing principles, making it essential for producers of antibiotics, lyophilized drugs, vaccines, hormones, and other injectable powders.
An injectable vial powder filling machine typically uses volumetric, gravimetric, or vacuum-based dosing systems to deliver exact powder quantities into vials ranging from 1 ml to 100 ml or larger. High-accuracy load cells or servo-driven mechanisms ensure fill weight consistency, often achieving tolerances within ±1–2%. This precision reduces product waste, supports tight dosage control, and helps manufacturers maintain batch uniformity required by pharmacopeial standards. Many models integrate nitrogen flushing or inert gas blanketing to protect oxygen-sensitive powders, preserving potency and extending shelf life. Aseptic design is central to the equipment’s value. Surfaces contacting the product are constructed from pharmaceutical-grade stainless steel (typically 316L), with polished finishes that minimize particle generation and facilitate thorough cleaning. The machine often operates under laminar airflow or within isolators and restricted access barrier systems (RABS) to maintain ISO Class 5 or better conditions. Features such as automatic vial feeding, stoppering, and capping stations further reduce human intervention, lowering contamination risk—a key factor in EEAT-aligned manufacturing where patient safety is paramount.
Modern injectable vial powder filling machines support high throughput, with capacities ranging from a few thousand to tens of thousands of vials per hour depending on configuration. Continuous motion or intermittent systems, paired with servo controls, enable smooth handling of fragile glass vials while minimizing breakage. Integrated check-weighing, vision inspection for fill level or defect detection, and reject mechanisms ensure only compliant units proceed. Many units are designed for easy integration into complete sterile filling lines that include washing, sterilizing, filling, lyophilization (if needed), and packaging. Flexibility is another strength. Changeover parts allow quick adaptation to different vial sizes and powder characteristics—free-flowing, cohesive, or hygroscopic. Recipe-based controls and touchscreen HMI interfaces simplify operation, while 21 CFR Part 11-compliant software supports electronic batch records, audit trails, and data integrity. These capabilities help manufacturers demonstrate process control and traceability during regulatory inspections by agencies such as the FDA, EMA, or WHO.
Manufacturers of high-quality injectable vial powder filling machines draw on decades of experience in sterile processing and pharmaceutical engineering. Equipment is typically engineered and validated according to cGMP, GAMP 5, and relevant ISO standards. Factory acceptance testing (FAT), site acceptance testing (SAT), and comprehensive documentation packages (IQ/OQ/PQ protocols) provide the evidence needed for validation. After-sales support—including training, spare parts availability, and remote diagnostics—further reinforces reliability and long-term performance.
By investing in a well-designed injectable vial powder filling machine, pharmaceutical companies strengthen their ability to produce safe, effective injectable products consistently. The combination of precise dosing, robust aseptic design, regulatory alignment, and operational efficiency supports both product quality and manufacturing excellence. Whether scaling production of established injectables or bringing new sterile powder formulations to market, this equipment remains a cornerstone of modern parenteral manufacturing.
The sterilized powder is stored in the powder hopper, where dual mechanical agitators continuously blend it to ensure consistent flow characteristics and uniform bulk density. Positioned directly below the hopper is a powder wheel equipped with twelve ports that rotates at a preset speed with virtually no clearance. Each port houses a piston, while a vacuum plate is held firmly against the rear face of the powder wheel by constant back-spring pressure, maintaining zero clearance.
As the dosing wheel rotates, vacuum draws an exact volume of powder into each port. Fill volume is set by adjusting the piston length, enabling different dose sizes. A doctor blade scrapes away any excess powder; this blade can be adjusted from outside the machine without removing the powder hopper.
The powder stays held in the port by vacuum while the wheel indexes. When the port reaches the vertical position directly above the container, a brief pulse of sterilized low-pressure compressed air (or nitrogen) is applied in sequence. This cleanly ejects the powder from the port into the waiting container. Right after filling, a vial separator on the conveyor spaces the containers and moves them to the stoppering station.
Sterilized, siliconized rubber stoppers are supplied from a vibratory bowl into a vertical chute, where they stack in an orderly manner. Each container is firmly gripped between a pair of timing belts that raise it to collect a stopper from the chute exit. The container then passes between two pressing rollers that seat the stopper firmly and ensure a secure, tight fit.
Models | APF 12S | APF 12D |
Production Output | Up to 100 vials/minute | Up to 200 vials/minute |
Fill Volume | 50 mg. to 10grams | 50 mg. to 10 grams |
Vial Size | 5ml to 250ml | 5ml to 250ml |
Filling Accuracy | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Injectable Powder | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Injectable Powder |
Power Load | 3.5 H. P. | 4.5 H. P. |
Overall Dimension | 2600mm (L) X 1100mm (W) X 1800mm (H) approx. | 3000mm (L) X 1100mm (W) X 1800mm (H) approx. |
Net Weight | 500 kgs. approx. | 700 kgs. approx. |
Gross Weight | 750 kgs. approx. | 950 kgs. approx. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
Sterilized powder is agitated in the hopper to maintain uniform density. A vacuum-driven powder wheel draws a precise volume of powder into each port. Excess powder is removed by a doctor blade. When the port reaches the vial, a pulse of sterilized low-pressure air or nitrogen ejects the powder into the container. Filled vials then move to the integrated rubber stoppering station.
The machine typically achieves a filling accuracy of ±2% to ±3% in single dosing, depending on the consistency and bulk density of the injectable powder and controlled environmental conditions.
Depending on the model, output ranges from up to 100 vials per minute (APF 12S – single powder wheel) to up to 200 vials per minute (APF 12D – double powder wheel).
It can process vials from 5 ml to 250 ml and fill volumes from 50 mg to 10 grams. Multiple dosing is possible with the help of change parts.
Yes. All product-contact parts are made of SS 316L stainless steel with an easy-removal system for cleaning, autoclaving, and sterilization. Optional inbuilt laminar airflow for Class 100 environments further supports aseptic processing.
Yes. It features a built-in rubber stoppering system. Sterilized siliconized rubber stoppers are automatically oriented in a vibratory bowl and securely inserted into the filled vials using timing belts and pressing rollers.
Key features include a clutch system for vial breakage protection, no-vial-no-fill sensors, tool-free adjustment of doctor and wiper blades, optional PLC with HMI, and optional sampling and automatic rejection systems.
Yes. IQ/OQ validation documentation can be supplied on request to support regulatory compliance and qualification activities.
Yes. It can be seamlessly connected with vial washing machines, sterilization tunnels, capping machines, labeling systems, and inspection equipment to form a complete sterile injectable powder filling line.
