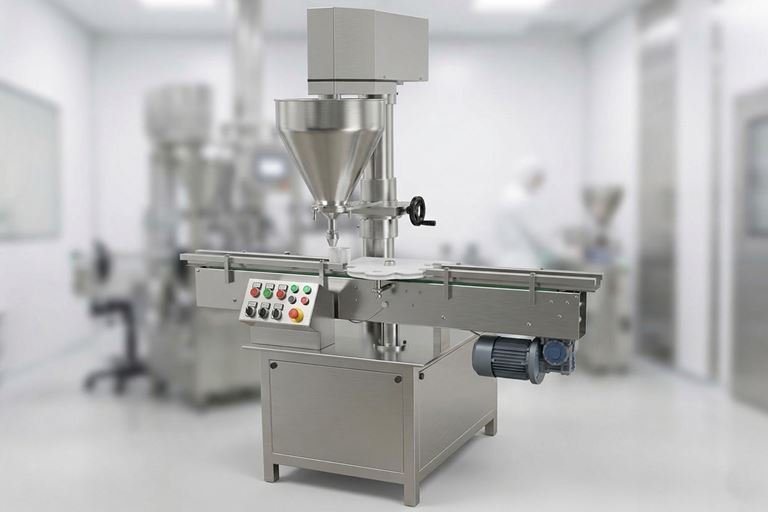

Pharma Powder Filling Machine is a high-precision pharmaceutical equipment engineered for accurate, contamination-free filling of dry powders into bottles, vials, jars, or sachets. In the pharmaceutical industry, where dosage accuracy, product integrity, and regulatory compliance are critical, this machine plays a vital role in producing consistent, high-quality powdered formulations such as antibiotics, nutraceuticals, oral powders, and injectable powders.
A modern pharma powder filling machine uses advanced dosing technologies—volumetric, gravimetric, auger, or vacuum-based systems—to deliver exact powder quantities with minimal variation. High-accuracy load cells and servo-driven mechanisms help achieve tight fill-weight tolerances, often within ±1%. This precision reduces product giveaway, ensures uniform dosage, and supports compliance with pharmacopeial standards. Many models feature automatic weight feedback and reject systems that remove under- or over-filled containers in real time, further enhancing batch quality. The equipment is designed for a wide range of powder characteristics, including free-flowing, cohesive, hygroscopic, or sticky powders. Adjustable tooling and recipe-based controls allow quick changeovers between different container sizes and fill weights, improving production flexibility. Dust-tight enclosures and integrated dust extraction systems minimize airborne particles, protecting both the product and the operator while maintaining a clean manufacturing environment.
For sterile applications, pharma powder filling machines incorporate pharmaceutical-grade stainless steel (typically 316L), smooth crevice-free surfaces, and easy-clean designs that support thorough CIP/SIP procedures. When used for injectable or highly sensitive powders, the machines can operate under laminar airflow, isolators, or RABS to maintain the required cleanroom classification. Nitrogen flushing options protect oxygen-sensitive powders, preserving potency and extending shelf life. High-speed models deliver impressive throughput—from a few thousand to over 20,000 containers per hour—while maintaining gentle product handling to avoid degradation or segregation of the powder blend. Integrated inspection systems, such as vision cameras and check-weighers, verify fill levels, detect missing or defective containers, and ensure only compliant units proceed to the next stage.
Leading manufacturers of pharma powder filling machines bring decades of specialized experience in pharmaceutical process equipment. Machines are engineered and validated according to cGMP, GAMP 5, and relevant FDA, EMA, and WHO guidelines. Comprehensive documentation packages—including IQ, OQ, and PQ protocols—along with 21 CFR Part 11-compliant software, support data integrity, electronic batch records, and full audit trails. These features help pharmaceutical companies demonstrate process control and readiness during regulatory inspections.
Reliable after-sales support, operator training, and readily available spare parts further strengthen long-term equipment performance and operational confidence. By combining precise dosing technology, robust construction, and regulatory alignment, a well-designed pharma powder filling machine enables manufacturers to achieve consistent product quality, higher productivity, and reduced risk of contamination or dosage errors.
Whether producing oral antibiotic powders, nutritional supplements, or sterile injectable formulations, the right pharma powder filling machine is a foundational asset for efficient, compliant, and scalable pharmaceutical manufacturing.

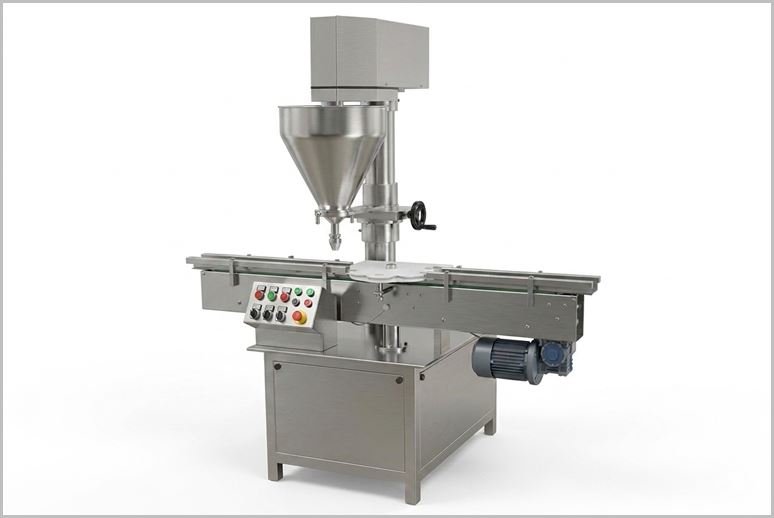

Cleaned containers are loaded onto the filling machine platform. From there, a conveyor belt carries them toward the filling station. When a bottle sensor detects a container, the magnetic clutch mounted on the auger shaft engages and begins rotating. The rotating auger dispenses the preset volume of powder into the container. Once filling is complete, the bottle continues along the conveyor to the next station for capping.
Models | AI-APF 1 | AI-APF 2 | AI-APF 3 |
Production Output | Up to 30 bottles/minute | Up to 60 bottles/minute | Up to 90 bottles/minute |
Fill Volume | 5gms. to 60gms. in Single Dose System | 5gms. to 60gms. in Single Dose System | 5gms. to 60gms. in Single Dose System |
Container Size | Custom made as per required container size | Custom made as per required container size | Custom made as per required container size |
Filling Accuracy | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder | ± 2 – 3% in single dosing depending upon consistency and uniformity of bulk density of Powder |
Power Load | 2 H. P. | 3 H. P. | 4.5 H. P. |
Overall Dimension | 1810 mm (L) x 905 mm (W) x 1900 mm approx. | 2300 mm (L) x 905 mm (W) x 1900 mm approx. | 3000 mm (L) x 905 mm (W) x 1900 mm approx. |
Conveyor Height | 850 – 950 mm adjustable | 850 – 950 mm adjustable | 850 – 950 mm adjustable |
Electrical | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive | 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
The machine uses volumetric, gravimetric, auger, or vacuum-based dosing systems. Powder is accurately measured and dispensed into containers. Many models include automatic weight feedback, dust control, and reject systems to maintain fill accuracy and product quality throughout the process.
It can handle a wide range of powders, including free-flowing, cohesive, hygroscopic, sticky, or fine pharmaceutical powders such as antibiotics, oral powders, nutraceuticals, and sterile injectable powders.
High-quality machines deliver fill tolerances of ±0.5% to ±1%. Models equipped with servo motors and load cells offer the highest precision and consistency, minimizing product waste and ensuring dosage uniformity.
Yes. Many models are designed for aseptic or sterile filling. They feature pharmaceutical-grade stainless steel construction, smooth surfaces for easy cleaning, and can operate under laminar airflow, isolators, or RABS to maintain required cleanroom conditions.
Depending on the model and configuration, Pharma Powder Filling Machines can fill between 10 and 100+ containers per minute. Higher-speed versions are available for large-scale production while still maintaining accuracy and gentle product handling.
Yes. Reputable Pharma Powder Filling Machines are built to meet cGMP, FDA, and other international pharmaceutical standards. They often include 21 CFR Part 11-compliant software, validation documentation (IQ/OQ/PQ), and CE certification for global use.
Absolutely. Options include dust collection systems, anti-static features, nitrogen flushing, different container sizes, integration with elevators or feeders, and automated check-weighing or vision inspection systems to match unique process requirements.
Critical contact parts are typically made from pharmaceutical-grade stainless steel (SS 316L). Non-contact parts use SS 304 or other suitable materials that offer corrosion resistance, durability, and easy cleaning to support hygienic pharmaceutical manufacturing.
Specialized manufacturers bring deep expertise in pharmaceutical equipment, provide full validation support, ensure regulatory compliance, and offer reliable after-sales service, training, and spare parts. This helps maintain consistent product quality, reduce downtime, and meet audit requirements with confidence.
