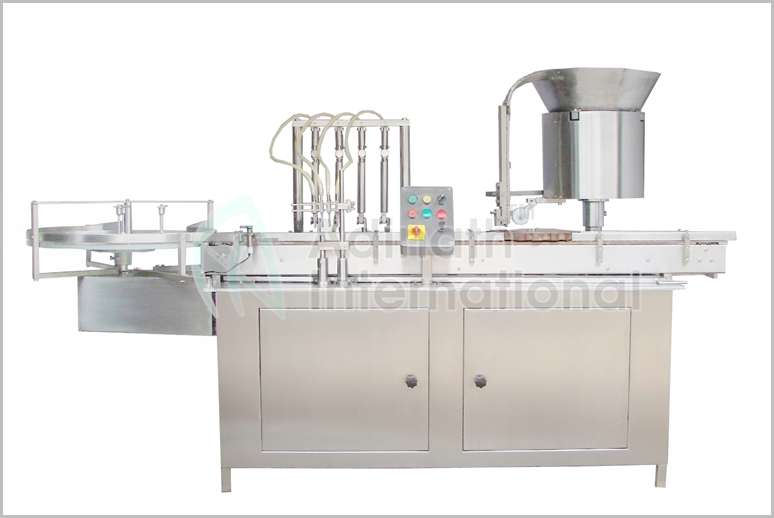

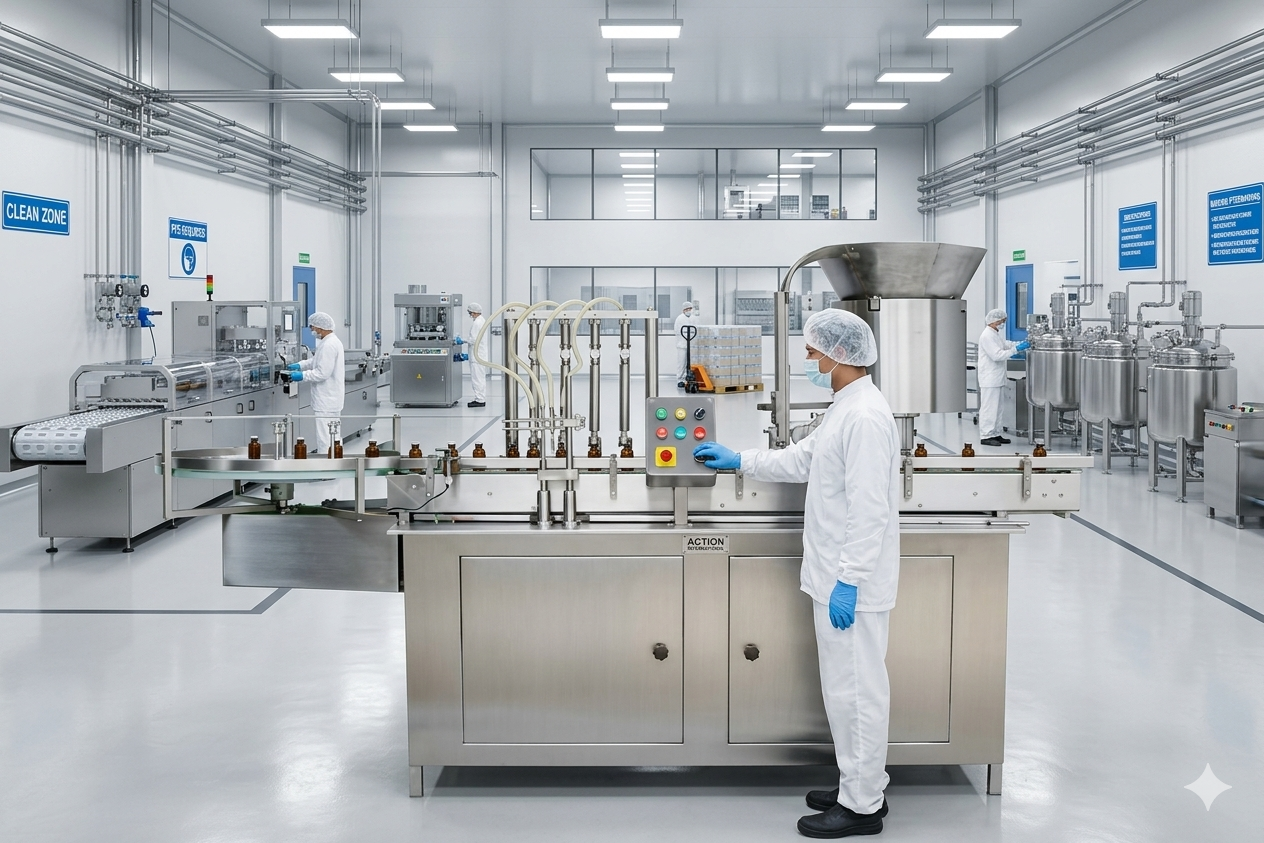

Automatic Vial Liquid Filling Machine

Description

In the precision-driven world of pharmaceutical manufacturing, the integrity of sterile products is paramount. Among the essential technologies ensuring this standard is the Automatic Vial Liquid Filling Machine—often referred to as an Injection Vial Filling Machine. These systems represent a critical intersection of high-speed automation, safety, and strict regulatory compliance. At its core, an automatic vial liquid filling machine is a sophisticated, compact system designed to handle the precise dosing and sealing of liquid medications into glass or plastic vials. These machines are engineered to operate within sterile environments, such as Cleanrooms, where the highest levels of hygiene and contamination control are mandatory. While basic models exist, the industry standard has shifted toward Monobloc technology. A monobloc machine integrates two critical processes—filling and stoppering (or bunging)—onto a single, streamlined platform. By combining these functions, manufacturers can significantly reduce the footprint of their production line, minimize the transfer of vials between separate machines, and substantially lower the risk of particulate contamination or human error.

In the modern pharmaceutical and biotech landscape, precision and efficiency are not merely operational goals—they are regulatory necessities. Achieving consistent output while maintaining strict quality control requires advanced machinery designed to meet the rigorous demands of high-speed filling environments. Our suite of automatic vial filling solutions is engineered to provide exactly that, offering unparalleled accuracy, throughput, and reliability for critical filling applications. At the core of our filling technology lies a commitment to dosing accuracy. We offer a diverse range of filling pump alternatives, each engineered to maintain a filling precision of ±1%. This level of accuracy is essential for minimizing costly product waste and ensuring that every vial adheres to stringent dosage specifications. Whether your formulation is aqueous, viscous, or sensitive, our pumps provide the stable, repeatable performance necessary for pharmaceutical-grade production.

In the highly regulated pharmaceutical and biotechnology industries, the integrity of the production line is non-negotiable. Manufacturers must adhere to Current Good Manufacturing Practices (cGMP) to ensure that every product meets stringent quality, safety, and purity standards. A critical component of maintaining this compliance is the selection of processing machinery—specifically, equipment engineered with high-grade materials and advanced operational features. When evaluating vial processing equipment, the focus should remain on Expertise, Authoritativeness, and Trustworthiness (E-E-A-T). By investing in machinery constructed from medical-grade stainless steel and designed for high-efficiency synchronization, pharmaceutical companies demonstrate a commitment to both operational excellence and patient safety.

Vial Feeding: Empty vials are loaded and aligned on a conveyor.

Preparation: Vials pass through washing/sterilization under laminar airflow in a Class 100 cleanroom environment.

Filling: Needles or nozzles dispense the liquid at controlled speeds; nitrogen flushing may be added to displace oxygen and extend shelf life.

Closing: Stoppers are inserted, and caps are applied, often with 100% in-process verification.

Output: Filled vials are ejected for further processing at rates from 100–600 vials per minute, depending on the model.

Salient Features of Automatic Vial Liquid Filling Machine

Compact footprint cGMP complied models.
2ml to 250ml fill dosage compatibility.
Filling accuracy of ±1% depends upon fluid & vial types.
No cross contamination.
On-line Mechanism.
Variable A.C. frequency drive for speed adjustment.
Digital Vial Counter for counting production output.

All Contact Parts Made from AISI SS 316L & framework by AISI SS 304.
Easy to validate filling system for small/large batch production.
In-feed Turn Table/ Unscrambler attached with the machine for automatic feeding of vials.
“No Vial – No Filling” system feature.
IQ/OQ documentation can be provided.
PLC system with Graphical User Interface. (Optional)

Working Principle of Automatic Vial Liquid Filling Machine

The incoming dry vials (sterilized and siliconized) are fed through the unscrambler and suitably guided on the moving Delrin slat conveyor belt at the required speed of the correct placement below filling unit.

The filling unit consists of Filling Head, Syringes & Nozzles; Syringes & Nozzles are made of AISI SS 316L materials. A Star Wheel is provided which holds the vial during filling operation. A sensor is provided for ”No Vial-No Filling” operation. Syringes are mounted on eccentric block and driving through bottom main gear box. Volume can be increase & decrease by increasing or decreasing stroke length of piston as per filling size. Syringes is having non return valve for sucking and delivering situation to avoid volume variation. Liquid reaches to filling nozzles through silicon transparent pipe. Nozzles having up & down movement with help of cam mechanism, and it come down when vial hold by starwheel for filling operation and starts filling when it starts to move up and after completion of filling operation, starwheel delivers two vials together on conveyor for rubber stoppering operation.

Stoppering unit consist of Star wheel, Vibrator unit and Bowl. The sterilized and siliconized rubber stoppers stored in the vibrator bowl moves vertically to the rubber stopper chute. The vial is hold firmly by starwheel, which will be in continuous rotary motion and vial which is coming from filling unit get in to starwheel and move in rotary direction along with starwheel, during movement it picks up the rubber stopper from the exit end of the chute and rubber stopper pressed by fix single pressing roller, which is spring loaded. Then vial further move on conveyor and collected on out feed starwheel for next sealing operation.

Technical Specification of Automatic Vial Liquid Filling Machine

Model	ALVF-40	ALVF-80	ALVF-120	ALVF – 250
Filling Heads	Two	Four	Eight	Twelve
Production Rate	Up to 40 Vials/Minute	Up to 80 Vials/Minute	Up to 150 Vials/Minute	Up to 250 Vials/Minute
Input Specification
Vial Diameter	15mm to 70mm	15mm to 70mm	15mm to 70mm	15mm to 70mm
Vial Height	25mm to 140mm	25mm to 140mm	25mm to 140mm	25mm to 140mm

Filling Precision	±1%	±1%	±1%	±1%
Power Required	1 H.P.	1.5 H.P.	2 H.P.	2 H.P.
Electrical Characteristics	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz	440 Volts, 3 Phase, 50 Hertz
Overall Dimension	2050mm (L) x 850mm (W) x 1700mm (H)	2200mm (L) x 850mm (W) x 1700mm (H)	3000mm (L) x 945mm (W) x 1700mm (H)	3500mm (L) x 945mm (W) x 1700mm (H)

* Power voltage can be adjusted as per customer’s domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.

Types of Vial Filling Machine

Automatic Vial Filling Machine

High Speed Vial Filling Machine

Vial Liquid Filling Machine

Vial Powder Filling Machine

Automatic Vial Filling and Rubber Stoppering Machine

Lab Scale Vial Filling Stoppering & Cap Sealing Machine

Injectable Vial Powder Filling & Stoppering Machine

Peristaltic Pump based Vial Filling Machine

Applications of Vial Liquid Filling Machine

Benefits of Automatic Vial Liquid Filling Machine

Precision and Compliance: Ensures exact dosing (±0.05–0.5%) and sterility, reducing rejects via features like re-stoppering.

Efficiency: Boosts throughput while integrating with downstream processes like freeze-drying for extended shelf life.

Versatility: Handles various liquids (e.g., oncology drugs, vaccines) and formats in cleanrooms.

Safety: Includes safeguards like no-bottle sensors and HEPA filtration to protect operators and products.

Key Components of Automatic Vial Liquid Filling Machine

Vial liquid filling machines are modular and often integrated into complete production lines. Common components include:

Unscrambler and Conveyor: Orient and transport vials to the filling station via a belt or rotary system.

Washing and Sterilizing Stations: Clean vials internally and externally using deionized water, air drying, and depyrogenation with hot air or steam to remove endotoxins.

Filling Heads/Nozzles: Servo-controlled peristaltic, piston, or time-pressure pumps deliver precise volumes without contact to avoid contamination.

Stoppering and Capping Unit: Inserts rubber stoppers and applies aluminum seals or crimps for secure closure.

Inspection Systems: Inline sensors for weight checking, leak detection, particle inspection, and container integrity.

Control Systems: PLC-based with touchscreens for real-time monitoring, recipe storage, and integration with lyophilizers or labeling machines.

FAQ for Automatic Vial Liquid Filling Machine

What is an Automatic Vial Liquid Filling Machine?

An Automatic Vial Liquid Filling Machine is a fully automated pharmaceutical equipment designed to precisely fill sterile liquids into glass vials. It integrates filling, rubber stoppering, and often sealing in a single continuous operation under aseptic conditions. These machines are ideal for producing injectable drugs, vaccines, antibiotics, and other parenteral liquid formulations while ensuring high accuracy, speed, and compliance with cGMP, FDA, and WHO standards.

What are the main advantages of an Automatic Vial Liquid Filling Machine?

Key advantages include:

Exceptional filling accuracy (±0.5% to ±1%)
High production output (up to 120–300 vials per minute depending on model)
Reduced human intervention, minimizing contamination risk in sterile environments
Significant labor and product waste savings
Consistent quality across batches with real-time monitoring
Easy integration into complete vial washing–sterilizing–filling–capping lines

Automation helps pharmaceutical manufacturers scale production efficiently while meeting stringent regulatory requirements.

What is the typical production capacity of an Automatic Vial Liquid Filling Machine?

Capacity varies by model and number of filling heads. Most machines offer:

40–80 vials per minute (2–4 heads) for small to medium batches
120–250+ vials per minute (6–12 heads) for high-speed commercial production

Output depends on vial size (typically 1ml to 50ml), liquid viscosity, and line configuration. Our models can be customized to match your required hourly output — feel free to share your batch size for the best recommendation.

How does an Automatic Vial Liquid Filling Machine ensure filling accuracy and sterility?

These machines use advanced dosing technologies such as peristaltic pumps, servo-driven piston pumps, or ceramic pumps for precise volume control. Features like diving nozzles (for foam-free filling), no-bottle-no-fill system, in-process weight checking, and automatic reject ensure accuracy within ±1% or better. The entire process occurs in ISO Class 5 / Grade A environments with RABS or isolator compatibility, using SS316L contact parts that are easy to clean and sterilize, maintaining product sterility and integrity.

What factors should I consider when choosing an Automatic Vial Liquid Filling Machine?

Important factors include:

Required production speed and batch volume
Vial size range and quick changeover flexibility
Liquid characteristics (viscosity, foaming, sensitivity)
Filling technology (peristaltic vs. piston pump)
Level of automation and integration with existing lines
Compliance with cGMP, FDA, EU-GMP, and cleanroom compatibility
After-sales support, spare parts availability, and maintenance

Our team can help you select or customize the right model based on your specific product and production needs.
